Gasket - end cover - IRD housing - KV6 (page 2 of 3)

Make

Land Rover

Model

Freelander Service Procedures

Section

REPAIRS

INTERMEDIATE REDUCTION DRIVEGasket - end cover - IRD housing - KV6 · page 2 of 3

INTERMEDIATE REDUCTION DRIVE

41-16

REPAIRS

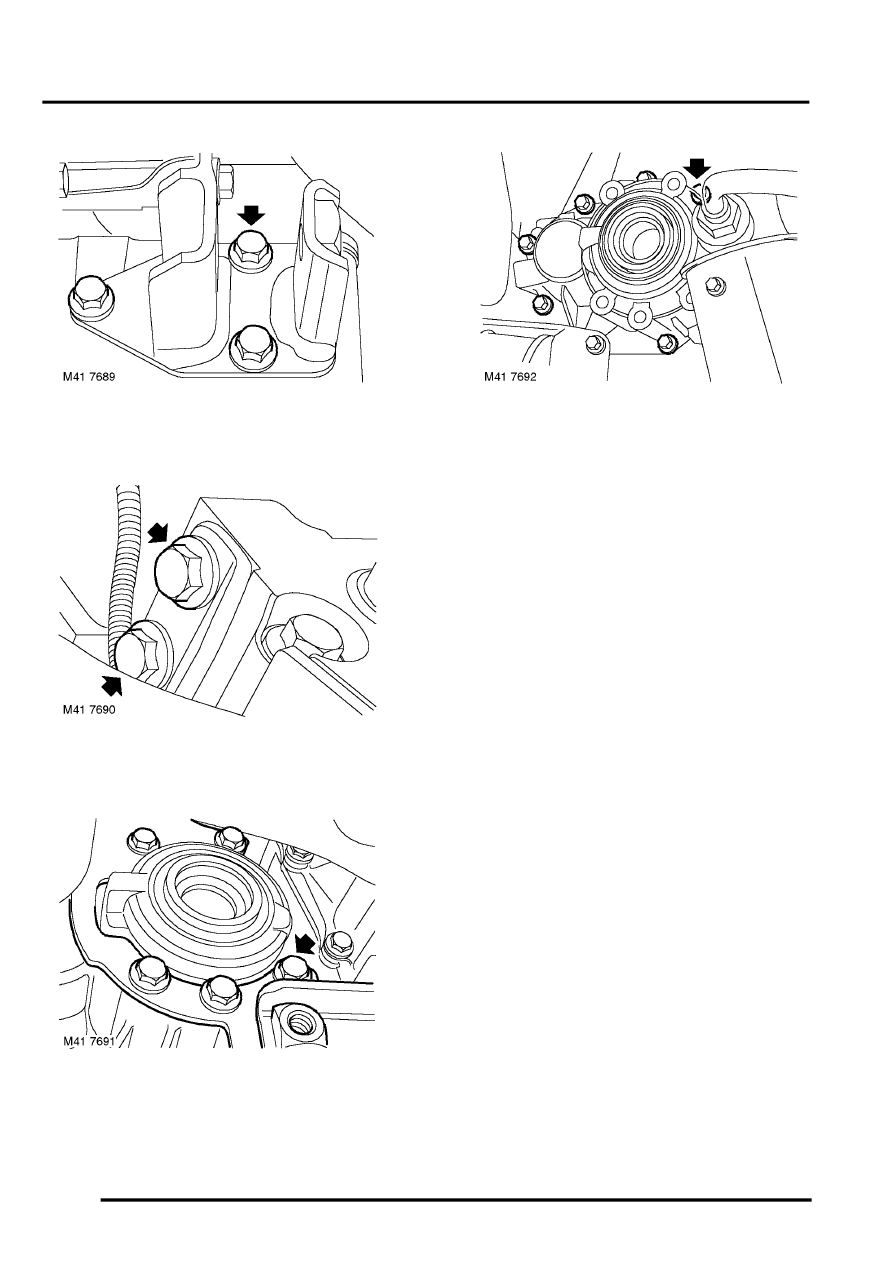

8. Remove 3 bolts securing IRD support bracket

to sump.

9. Remove 2 bolts securing IRD support bracket

to engine front mounting plate.

10. Remove 5 bolts securing support bracket to

IRD and remove bracket.

11. Remove 8 bolts securing end cover to main

case of IRD.

12. Remove end cover.

60 General
