Seal - driveshaft - LH - Td4 & KV6 models

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-23

Seal - driveshaft - LH - Td4 & KV6 models

$% 41.29.08

Remove

1. Remove LH drive shaft.

 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

2. Carefully remove and discard oil seal, take care

not to damage oil seal recess.

Refit

1. Clean oil seal recess.

CAUTION: Oil seal is waxed on outer
diameter and must not be lubricated before
fitting.

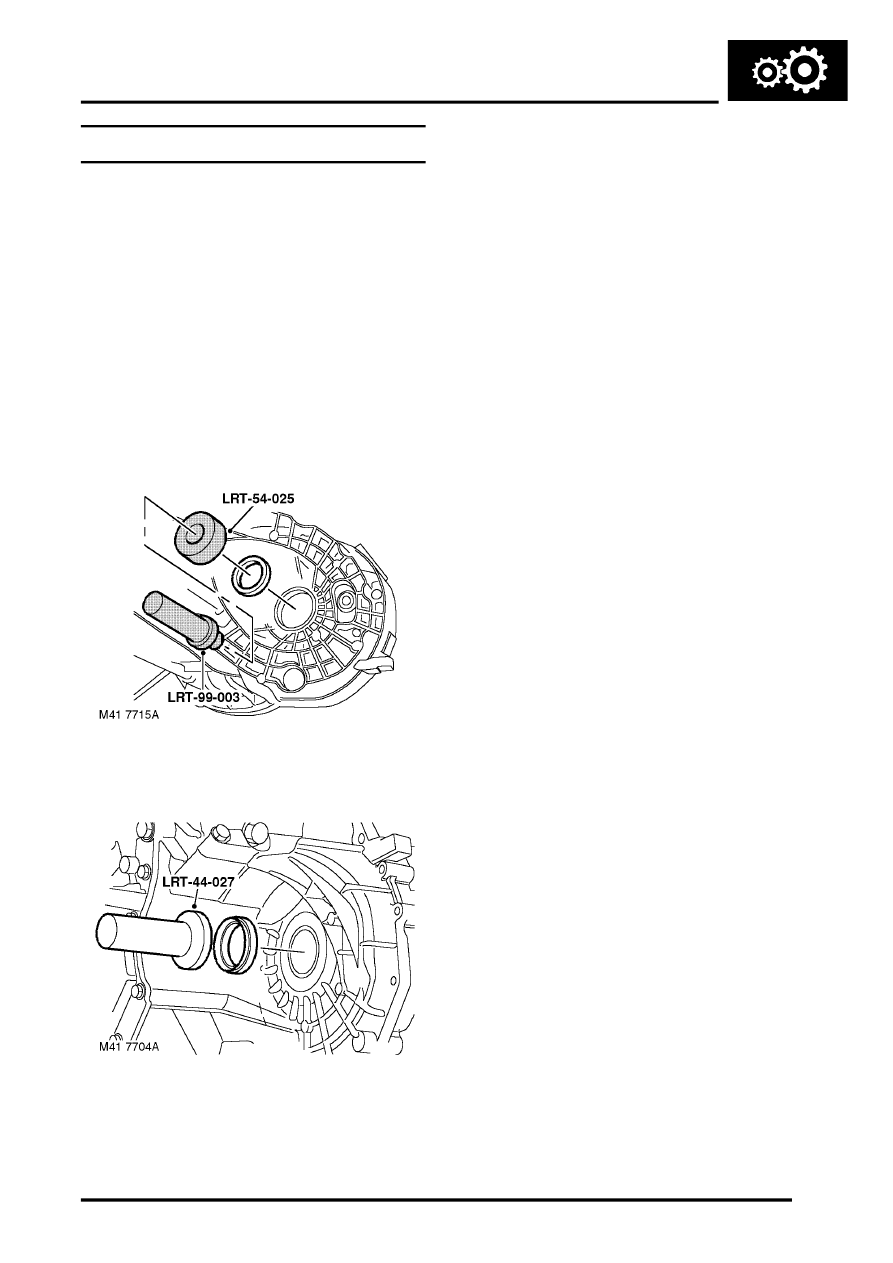

2. Models with manual gearbox:Using LRT-54-

025 and LRT-99-003, fit new oil seal.

3. Models with automatic gearbox: Using LRT-

44-027, fit new oil seal.

4. Fit LH drive shaft.

 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

5. Top-up gearbox fluid level.

 +

 MAINTENANCE, MAINTENANCE,

Automatic Gearbox – JATCO.
