Cover - cushion - rear single seat - 3 door

SEATS

REPAIRS

76-5-7

Cover - cushion - rear single seat - 3 door

$% 78.40.08

Remove

1. Remove rear seat assembly.

 +

 SEATS, REPAIRS, Cushion & squab

- rear seat - bench type - 3 door.

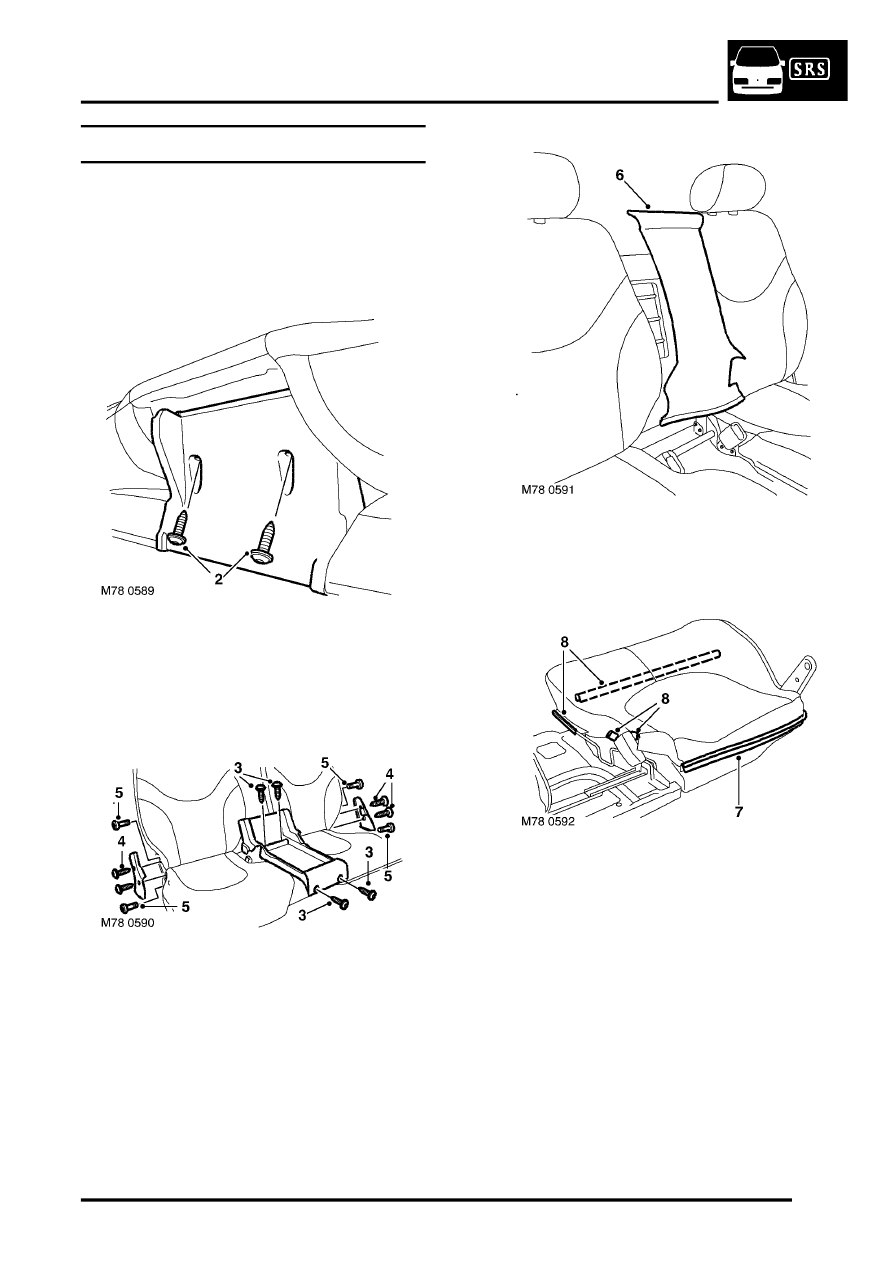

2. Remove 2 screws securing console cover and

remove cover.

3. Remove 4 screws and remove rear seat centre

console.

4. Remove 4 screws securing end covers and

remove covers.

5. Remove 4 Torx bolts and remove squab

assembly from cushion assembly.

6. Release back board assembly from squab

frame and remove back board.

7. Release rear of cushion cover from frame.
8. Release sides and front of cushion cover from

frame.
