Handbrake cable - disc brakes (page 2 of 2)

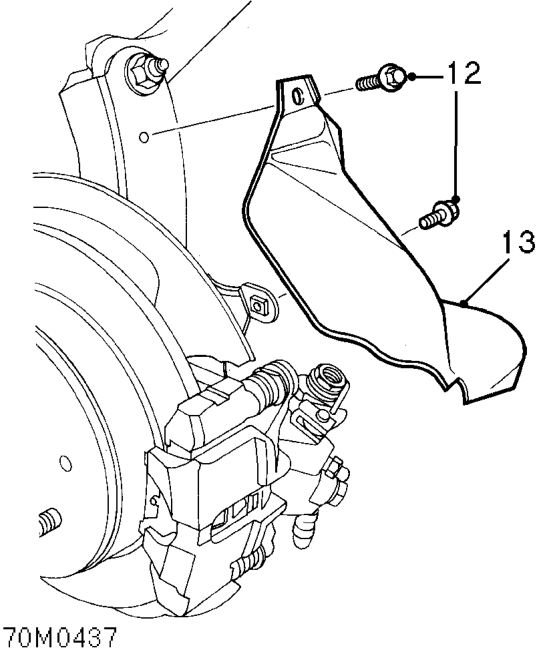

12. Remove 2 bolts securing caliper shield.
13. Remove caliper shield.

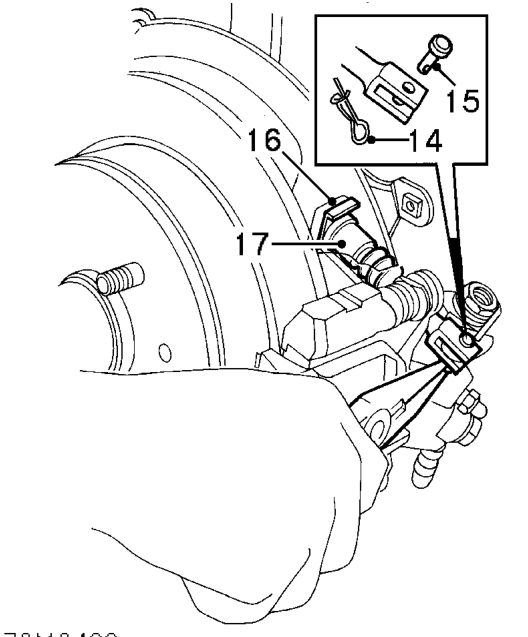

14. Remove handbrake cable clevis pin spring clip. Discard clip.
15. Remove handbrake cable clevis pin.
16. Remove retaining clip from cable abutment.
17. Release handbrake cable from abutment bracket and trailing arm.
18. Remove handbrake cable from inside vehicle.

Refit

1. Manoeuvre handbrake cable into position from inside vehicle, pass through trailing arm and abutment bracket.
2. Fit cable retaining clip to abutment.
3. Align cable to lever, fit clevis pin and retain with NEW spring clip.
4. Apply grease to yoke. See INFORMATION, Capacities, fluids and lubricants.
5. Fit caliper shield, tighten bolts to 10 Nm.
6. Secure handbrake cable brackets to trailing arm and body, tighten bolts to 22 Nm.
7. Fit grommet to cable and secure to body.
8. Connect handbrake cable to equaliser.
9. Ensure spring is in place and engage equaliser on adjusting rod.
10. Fit cable adjusting nut.
11. Locate cables in retaining plate, tighten bolts to 22 Nm.
12. Adjust handbrake cable. See Adjustments.
13. Fit rear console. See BODY, Interior trim components.
14. Fit fuel tank heat shield, tighten bolts to 9 Nm.
15. Raise exhaust pipe into position and connect mountings.
16. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
17. Remove stand(s) and lower vehicle.
