Equipment (page 2 of 2)

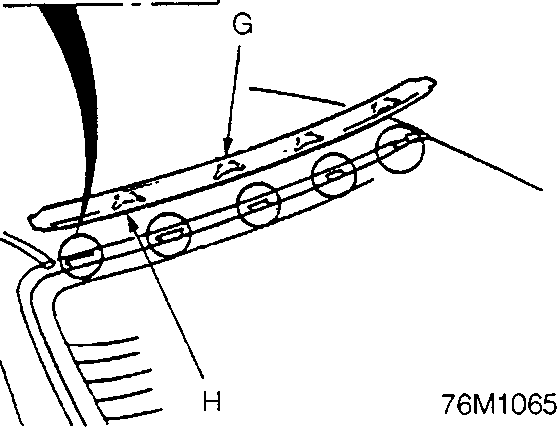

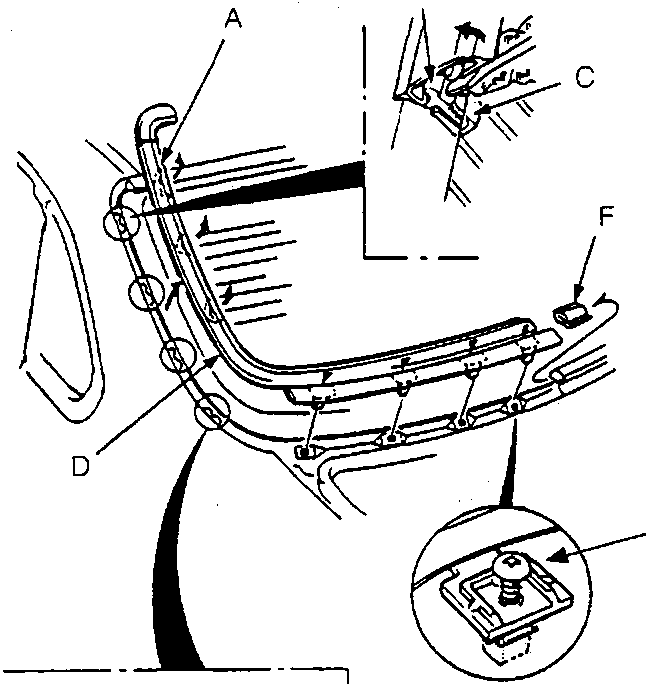

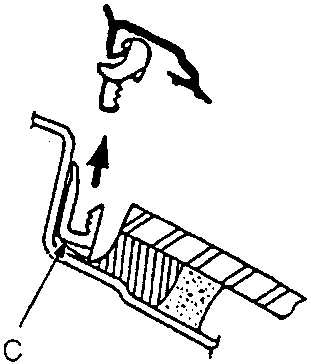

A Side clip (moulding) B Side clip (body) C Retainer D Side moulding E Moulding lower holder F Joint moulding G Upper moulding H Upper clip 5. Detach the clips and remove the mouldings as shown. 6. Apply protective tape / covering over rear speakers.

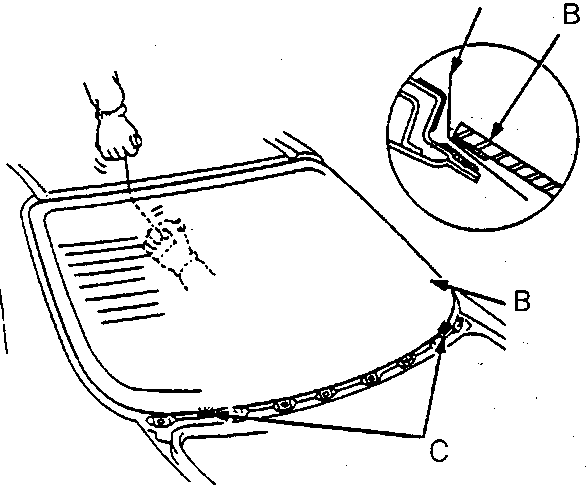

76M1066 A Cutting (piano) wire B Rear screen C Lower spacers 7. Using an awl or a suitable tool make a hole through the bonding at a convenient point. Push the cutting (piano) wire through the hole and wrap each end around a piece of wood or suitable handles. 8. With an assistant, pull the cutting wire slowly back and forth in a sawing motion and carefully cut around the entire windscreen.

Note: The sawing/cutting action must be done slowly and carefully or the wire will get hot very quickly, anneal and break.

CAUTION: Hold the cutting wire as close to the glass as possible to prevent damage to the body and dashboard, etc.

9. Carefully remove the rear screen. 10. Remove other retainers and spacers from the body, noting and marking their positions with a wax crayon.
