Rover 800 Workshop Manual (1996-1999)13 · Manifold & exhaust systems
13 · Engine

Exhaust manifold gaskets - diesel (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manifold & exhaust systemsExhaust manifold gaskets - diesel · page 2 of 4
Diagram

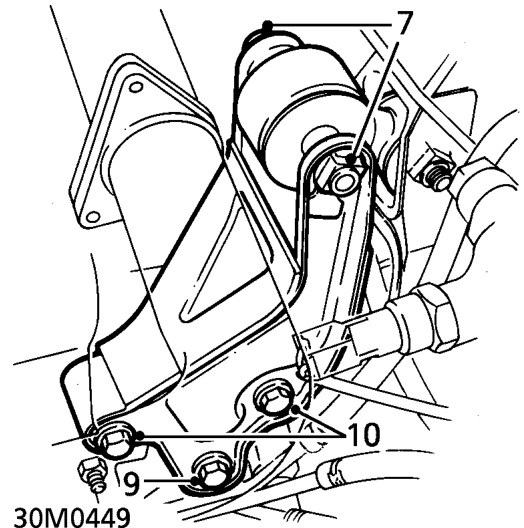

  1. Remove bolt securing engine steady bar to engine bracket.
  2. Collect special nut.
  3. Loosen engine steady bracket lower bolt.
  4. Remove steady bracket 2 upper bolts and move bracket back towards bulkhead.
Remove steady bracket 2 upper bolts and move bracket back towards bulkhead.

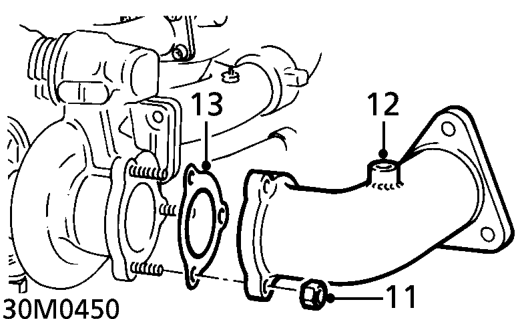

  1. Remove 3 nuts securing turbocharger outlet elbow, collect heat shield bracket.
  2. Remove elbow.
  3. Remove and discard gasket.
  4. Position suitable container below coolant pump.
Position suitable container below coolant pump.

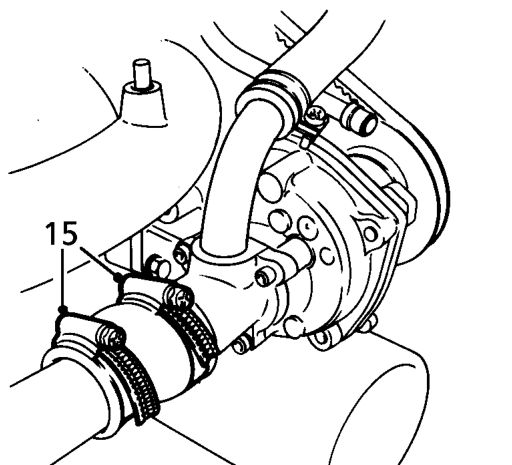

  1. Loosen 2 clips securing connecting pipe hose.
  2. Release hose from coolant pump.
  3. Position cloth to absorb oil spillage.
Position cloth to absorb oil spillage.

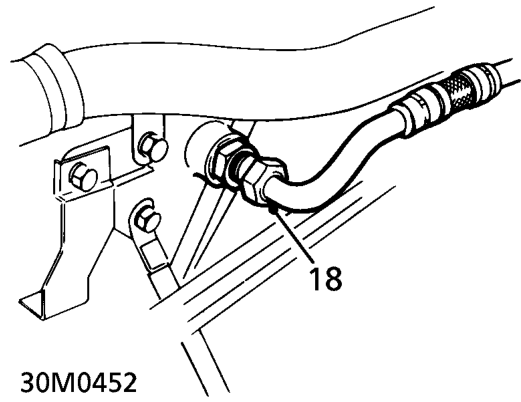

  1. Disconnect turbocharger oil return hose union.
