Manifold & exhaust systemsExhaust manifold gaskets - diesel · page 3 of 4
Diagram

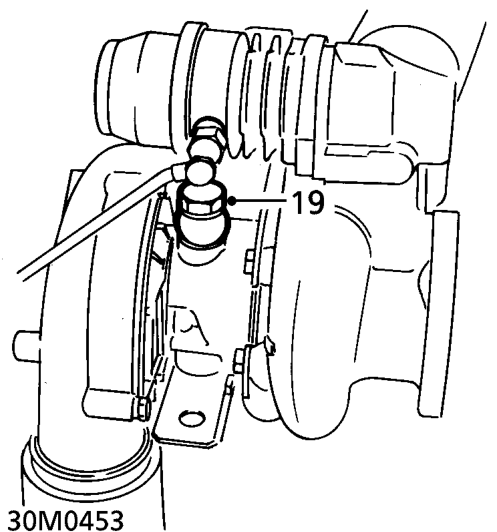

  1. Disconnect turbocharger oil feed union and discard 2 sealing washers.
Disconnect turbocharger oil feed union and discard 2 sealing washers.

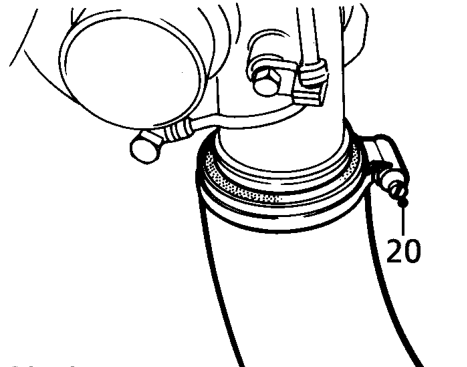

  1. Loosen clip securing intercooler hose to turbocharger and disconnect hose.
  2. Plug turbocharger to prevent ingress of dirt and foreign matter.
Plug turbocharger to prevent ingress of dirt and foreign matter.

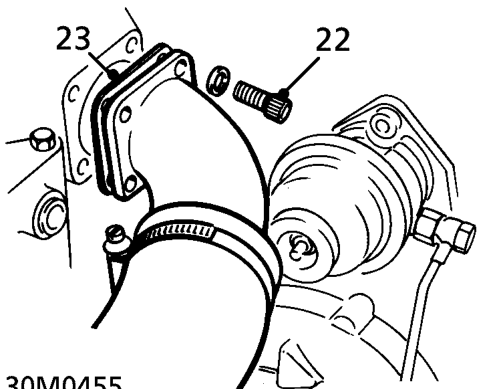

  1. Remove 4 Allen screws securing intake manifold elbow.
  2. Release elbow, remove and discard gasket.
Release elbow, remove and discard gasket.

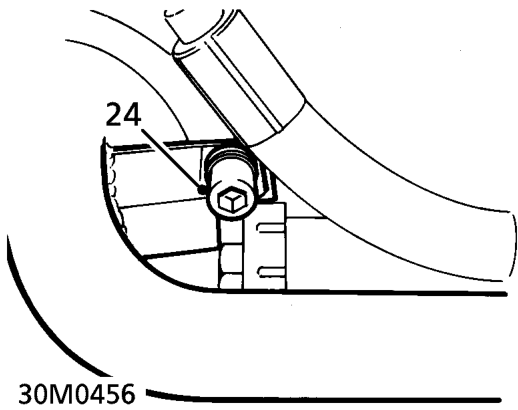

  1. Remove Allen screw securing coolant pipe to turbocharger support bracket.
