Rover 800 Workshop Manual (1996-1999)13 · Manifold & exhaust systems
13 · Engine

Exhaust manifold gaskets - diesel (page 4 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manifold & exhaust systemsExhaust manifold gaskets - diesel · page 4 of 4
Diagram

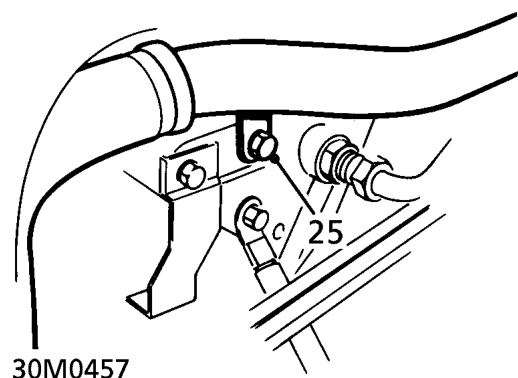

  1. Remove bolt securing coolant pipe to engine backplate.
Remove bolt securing coolant pipe to engine backplate.

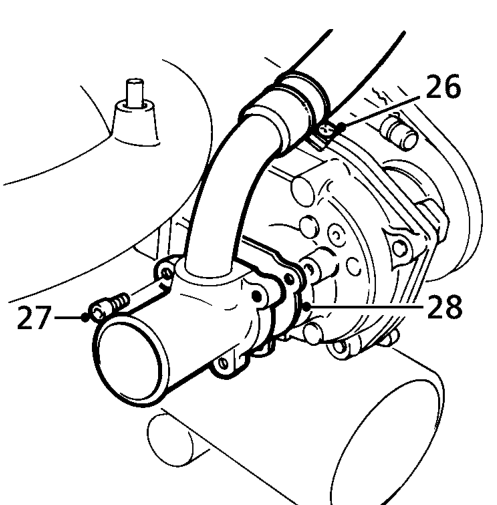

  1. Slacken clip securing hose to coolant pump and disconnect hose.
  2. Remove 3 Allen screws securing coolant pump inlet adapter and remove adapter.
  3. Remove and discard gasket.
Remove and discard gasket.

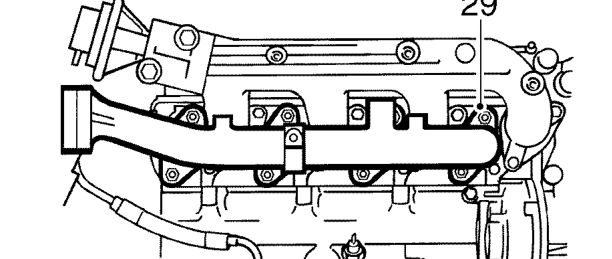

  1. Remove 8 nuts securing exhaust manifold.
Remove 8 nuts securing exhaust manifold.

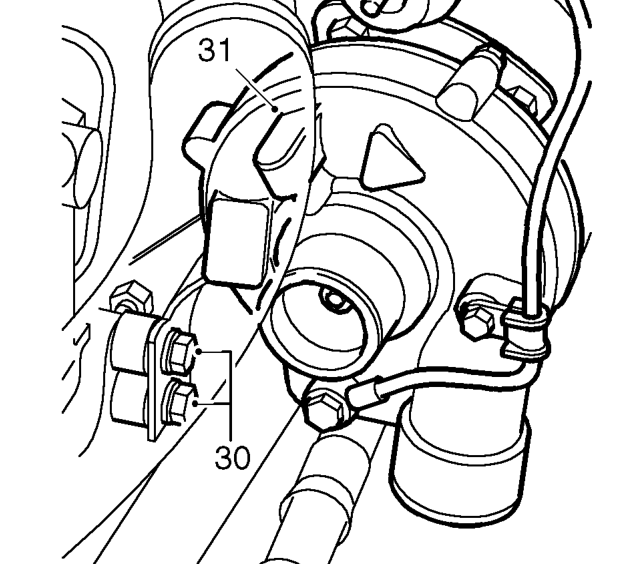

  1. Remove 2 bolts securing turbocharger support bracket to engine backplate. Collect 2 spacers.
  2. Remove exhaust manifold and turbocharger assembly.
  3. Remove and discard 4 gaskets.
