Rover 800 Workshop Manual (1996-1999)13 · Manifold & exhaust systems
13 · Engine

Exhaust manifold gaskets - KV6 (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manifold & exhaust systemsExhaust manifold gaskets - KV6 · page 2 of 4
Diagram
  1. Disconnect front and rear oxygen sensor multiplugs.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

Raise front of vehicle.

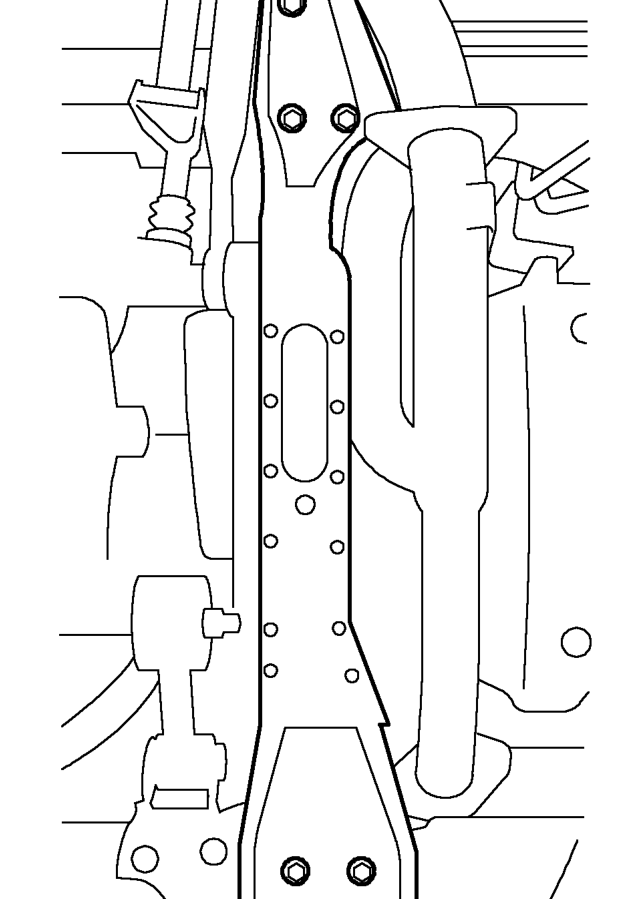

  1. Remove 8 bolts securing centre beam to front and rear cross-members. Remove centre beam.
  2. Remove underbelly panel, See BODY, Repairs.
Remove underbelly panel, See BODY, Repairs.

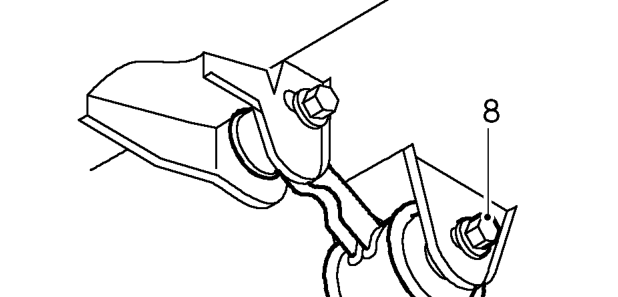

  1. Remove bolt securing engine front steady bar to engine bracket.
