Exhaust manifold gaskets - KV6 (page 3 of 4)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Repairs

Manifold & exhaust systemsExhaust manifold gaskets - KV6 · page 3 of 4

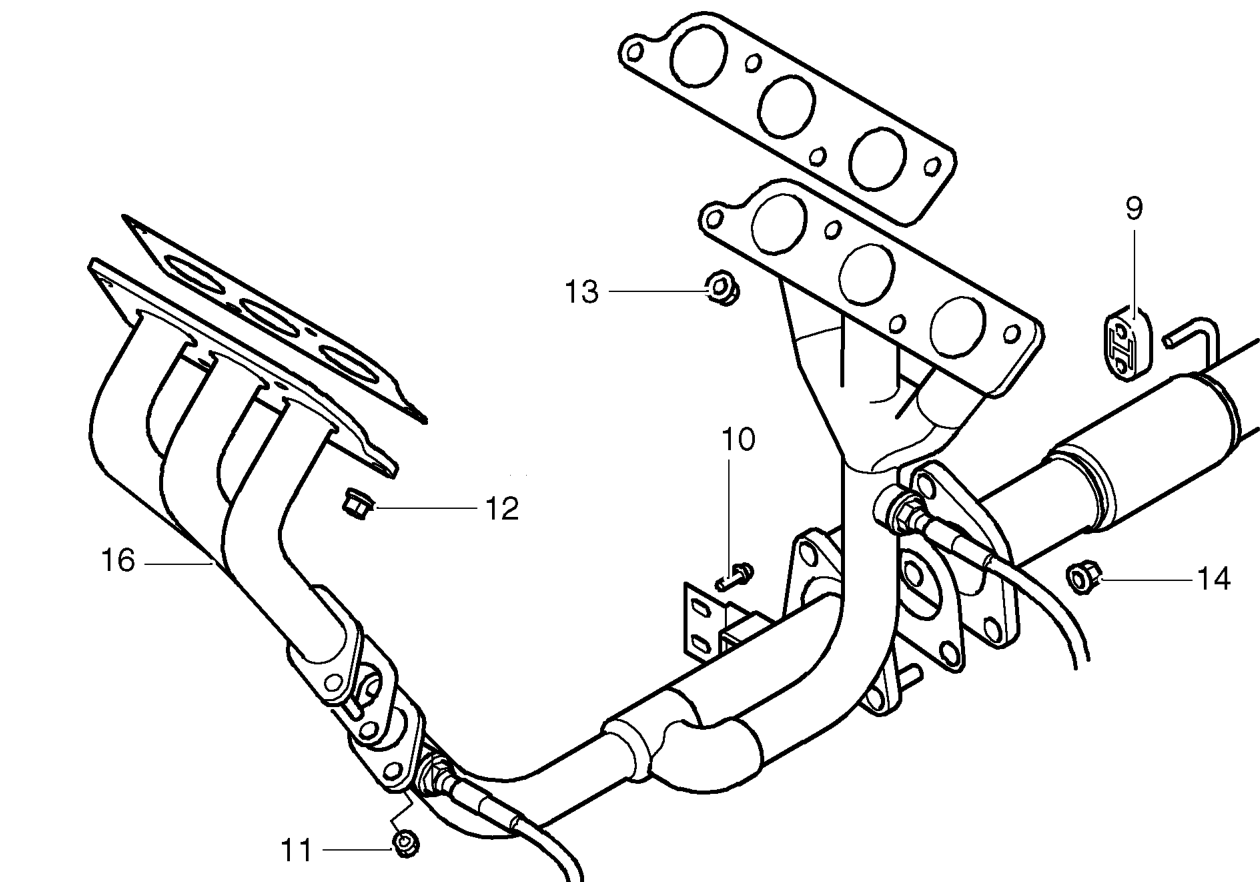

9. Release rubber mounting from exhaust flexible pipe.
10. Remove 2 bolts securing exhaust front pipe support bracket to engine sump.
11. Remove 2 nuts securing exhaust front pipe to LH exhaust manifold.
12. Remove 4 nuts securing LH exhaust manifold to cylinder head.
13. Remove 4 nuts securing RH exhaust manifold to cylinder head.
14. Remove 3 nuts securing front pipe to exhaust flexible pipe.
15. With assistance carefully lever engine forward approximately 15 mm and remove exhaust front pipe assembly.
16. Remove LH exhaust manifold and discard all gaskets.

13 Engine
