Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Engine and ancillaries (page 2 of 5)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - Td5Engine and ancillaries · page 2 of 5
Diagram

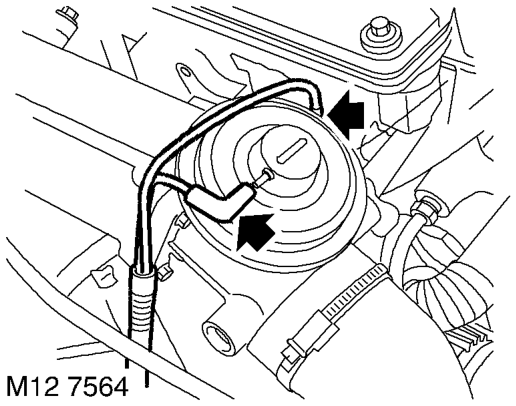

  1. Disconnect vacuum hose from EGR valve.
Disconnect vacuum hose from EGR valve.

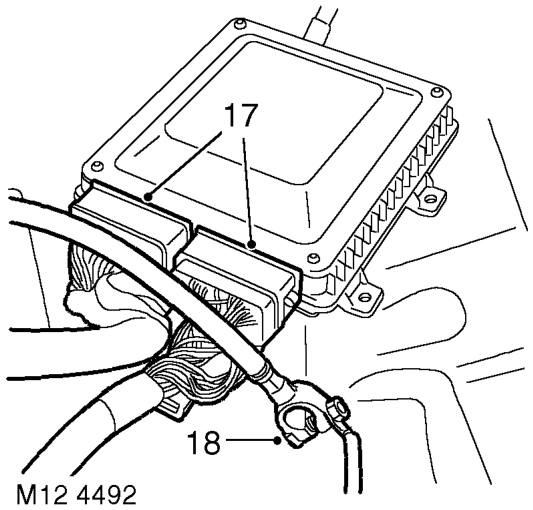

  1. Disconnect 2 engine harness multiplugs from
  2. Remove bolt securing engine earth lead to

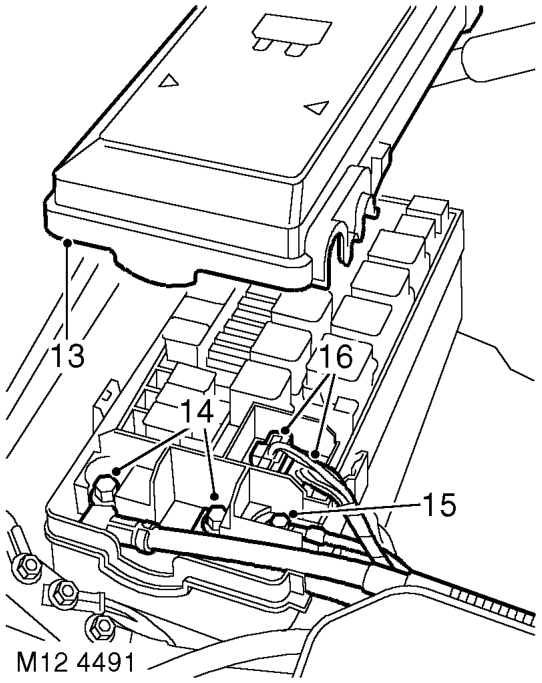

  3. Remove engine compartment fuse box cover.
  4. Remove bolts securing battery and alternator leads to fuse box. 19. Disconnect multiplug from EGR modulator.
  5. Remove bolt securing glow plug lead to fuse box.
  6. Disconnect 2 engine harness multiplugs from fuse box.
Disconnect 2 engine harness multiplugs from fuse box.

ECM and main harness.

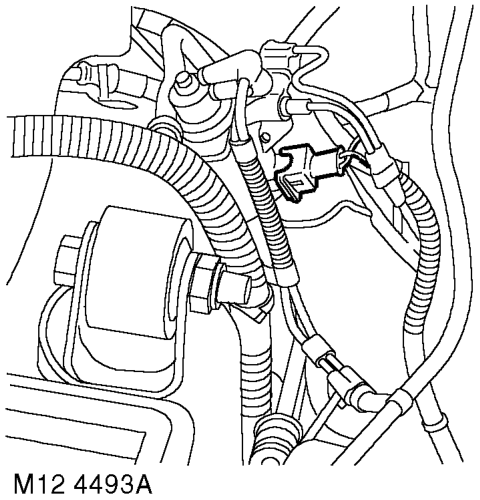

battery earth lead.
