Engine and ancillaries (page 5 of 5)

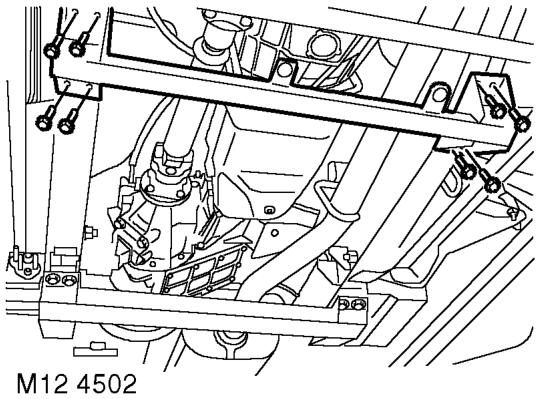

45. Remove 8 bolts and remove front cross member.

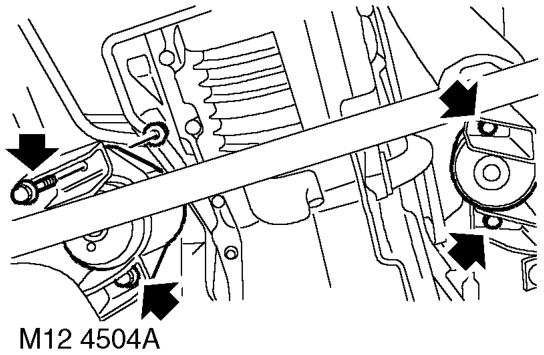

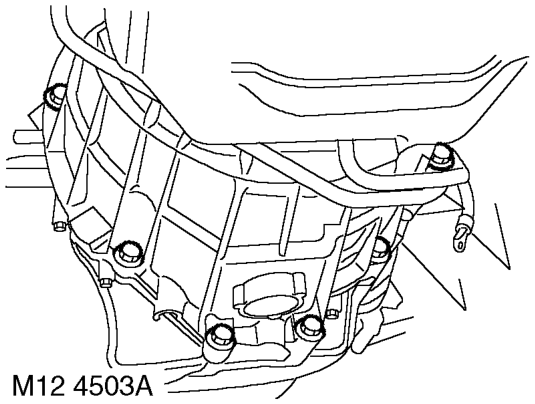

46. Remove 6 bolts securing gearbox housing to engine.

47. Remove 4 bolts and nuts securing RH and LH front engine mountings to chassis.
48. Lower vehicle ramp.

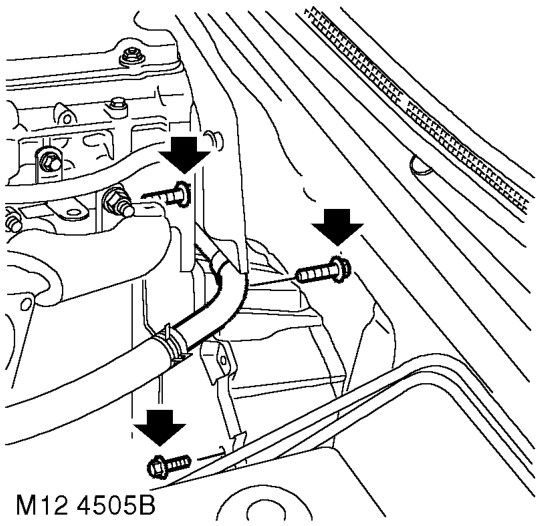

49. Remove 2 upper bolts securing gearbox housing and oil cooler coolant pipe to engine.
50. Release clip, disconnect hose from engine oil cooler and move aside.
51. Remove bolt securing engine closing panel to gearbox.

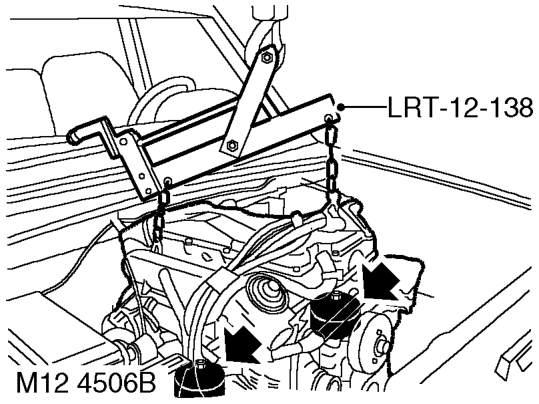

52. Fit tool LRT-12-138 to lifting chains and connect to lifting eyes on engine.
53. Remove 2 nuts from RH and LH front engine mountings.
54. Position trolley jack to support gearbox.
55. With assistance, raise chains, remove engine from vehicle and lower onto bench.

Refit

1. With assistance, raise engine from bench and position in vehicle.
2. With assistance, align engine to gearbox and torque converter.
3. Position engine RH and LH mountings to brackets and fit nuts.
4. Position engine oil cooler pipe, connect hose to oil cooler and secure with clip.
