Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Engine and ancillaries (page 4 of 5)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Engine - Td5Engine and ancillaries · page 4 of 5
Diagram
  1. Remove and discard 3 bolts securing torque
  2. Release clip and disconnect hose from coolant pump.
  3. Release clip and disconnect heater hose from coolant rail.
  4. Remove bolt securing coolant rail to front chassis member.
  5. Raise vehicle on ramp.
  6. Release coolant rail support brackets from engine LH and RH mounting brackets.
  7. Remove coolant rail. 40. Remove 2 bolts securing gearbox oil cooler
  8. Remove starter motor. CHARGING AND STARTING, REPAIRS, Starter motor - diesel. 41. Mark position of gearbox oil cooler pipe
  9. Remove 3 nuts and remove oil cooler pipe
  10. Loosen RH oil cooler pipe union.

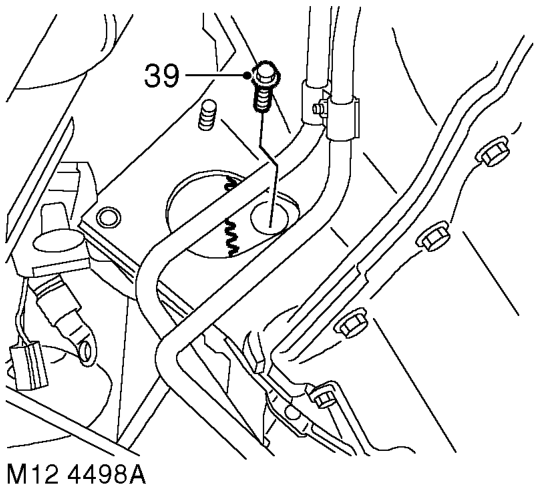

  11. Move pipes aside and tighten RH pipe union.
Move pipes aside and tighten RH pipe union.

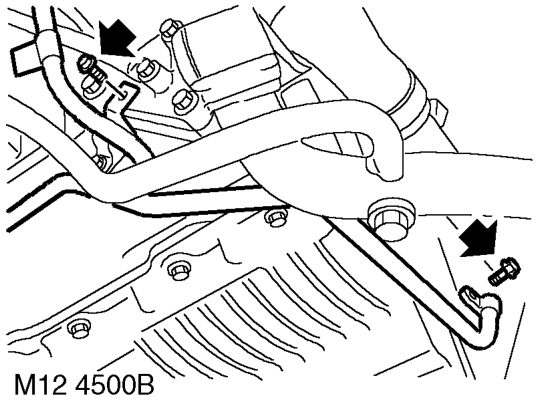

converter to drive plate.

converter to drive plate.

pipe clips from sump and alternator mounting bracket.

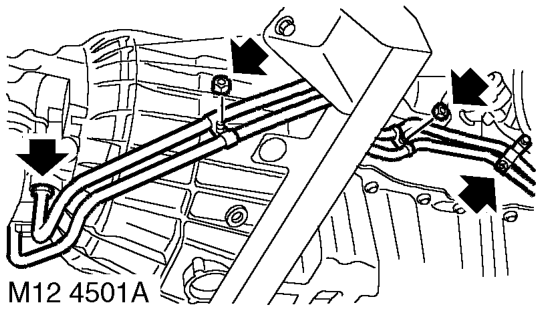

clamps.

clamps.

clamps.
