Louvre panel assembly - centre fascia (page 4 of 4)

Refit

1. With assistance position carpet. Carpet - rear
2. Secure main body harness to transmission tunnel with nuts.

$% 76.49.03

3. Position front carpet retainers and secure to floor with screws.

Remove

4. Fit finishers to front carpet retainers
5. Fit both lower 'A' post trim panels.
6. Fit centre console. l For models with manual gearbox: INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - manual models. l For models with automatic gearbox: INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic models.
7. Models with premium ICE: Fit CD autochanger. IN CAR ENTERTAINMENT, REPAIRS, CD autochanger.
8. Models with premium ICE: Fit power amplifier. IN CAR ENTERTAINMENT, REPAIRS, Amplifier - power.
1. Models with premium ICE: Remove power amplifier. IN CAR ENTERTAINMENT, REPAIRS, Amplifier - power.
2. Remove RH front seat. SEATS, REPAIRS, Seat - front.
3. Remove both 'B' post lower trim panels. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - lower - 'B' post.

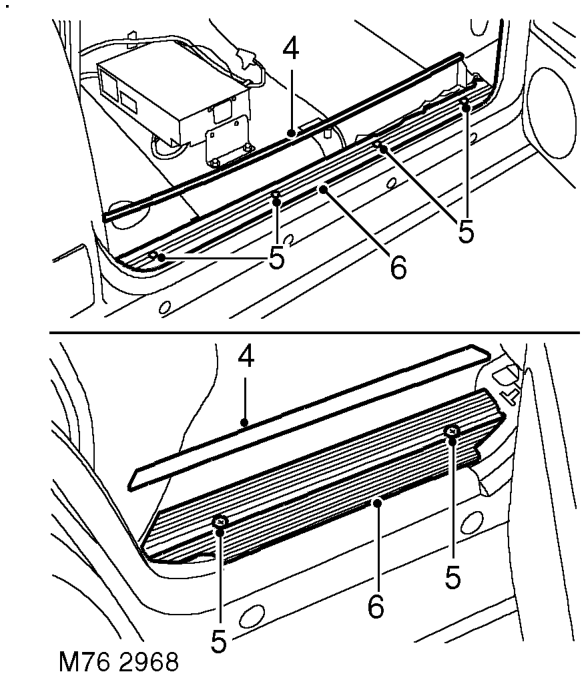

4. Remove finishers from front and rear carpet retainers.
5. Remove 12 screws securing front and rear carpet retainers to floor.
6. Remove front and rear carpet retainers.
