ENGINE - K SERIES KV6
12-3-86 OVERHAUL

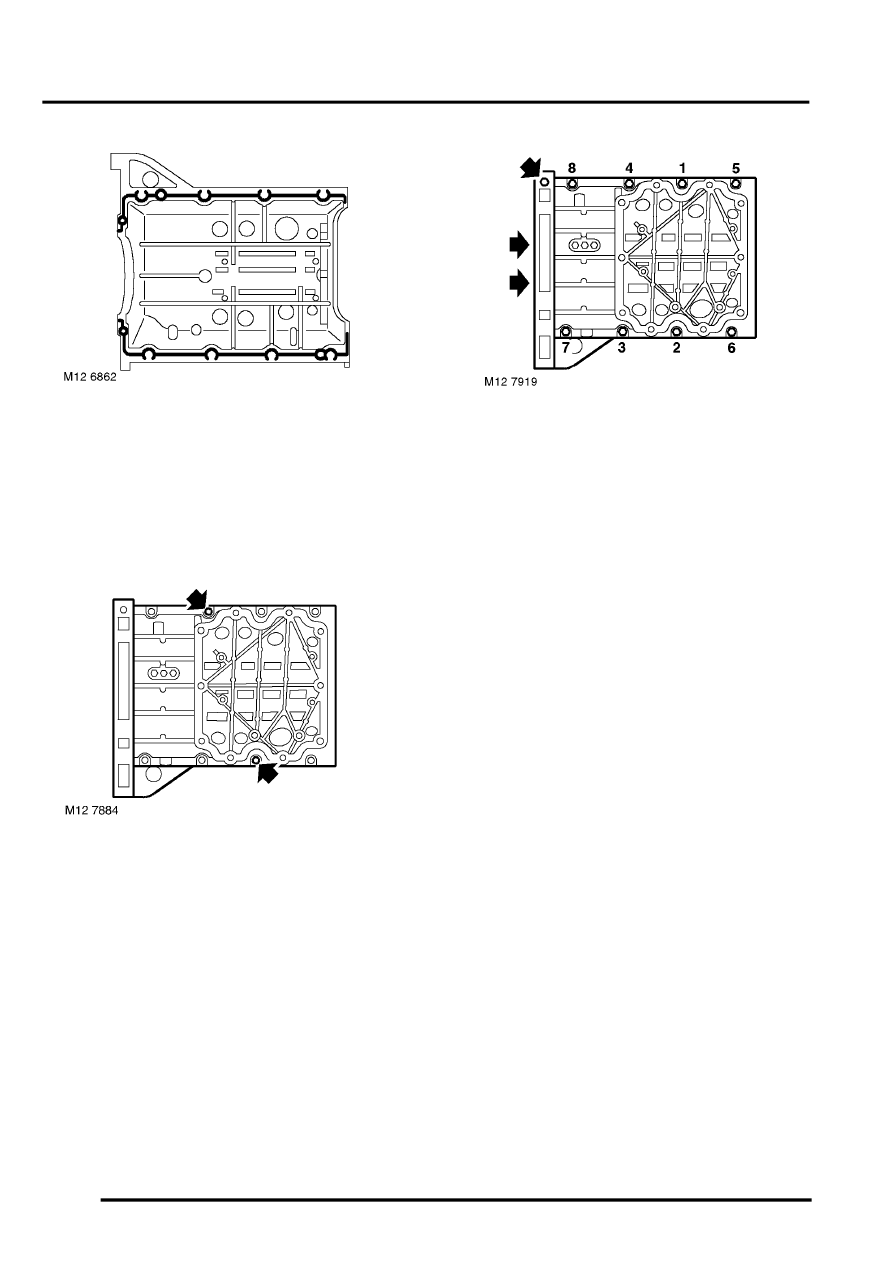

10. Apply a continuous bead of sealant, Part No.
STC 50550, to paths on lower crankcase as
shown then spread to an even film using a
roller.
CAUTION: To avoid contamination,
assembly must be completed immediately
after application of sealant.
11. Fit 2 M8 slave guide studs into cylinder block at
positions shown.
12. Position lower crankcase to cylinder block.
13. Fit and lightly tighten 6 M8 bolts, remove guide
studs, fit and lightly tighten 2 remaining M8
bolts.
14. Using sequence shown, tighten bolts to 25 Nm
(18 lbf.ft).
15. Fit and tighten remaining M8 bolt to 25 Nm (18
lbf.ft).
16. Fit 2 rear M6 bolts and tighten to 9 Nm (7 lbf.ft).
17. Clean oil pick-up strainer and mating face.
18. Lubricate new 'O' ring with clean engine oil and
fit to pick-up strainer.
CAUTION: Ensure 'O' ring, Part No. LYX
000210L is used.
19. Apply sealant, Part No. STC 50552 to threads
of oil pick-up strainer retaining bolt.
20. Position oil pick-up strainer, fit and tighten bolt
to 25 Nm (18 lbf.ft).
21. Clean oil pump, oil seal recess in oil pump body
and mating face on cylinder block, ensure bolt
holes are clean and dry.
22. Clean oil seal running surface on crankshaft.
