Engine - K161.4 & 1.6 Models · page 1 of 2
Diagram

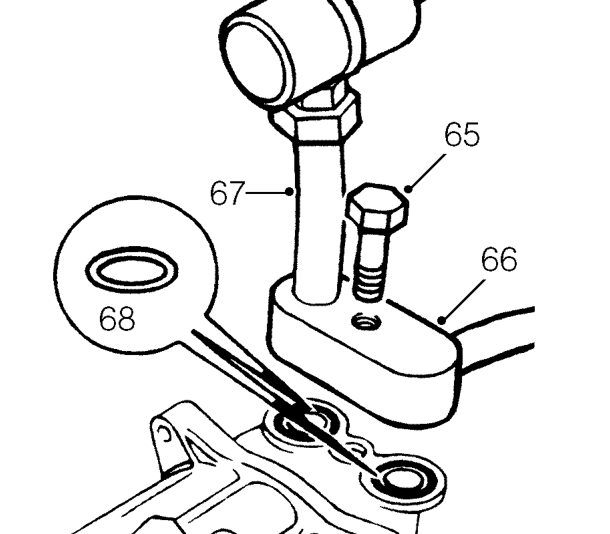

  1. Remove bolt securing air conditioning pipe union to compressor.
  2. Release air conditioning pipe union from compressor.
  3. Remove air conditioning pipes.
  4. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes and compressor to prevent ingress of dirt and moisture into the system.

1.4 & 1.6 Models

1.4 & 1.6 models – Remove and discard 2 ’O’ rings from compressor.

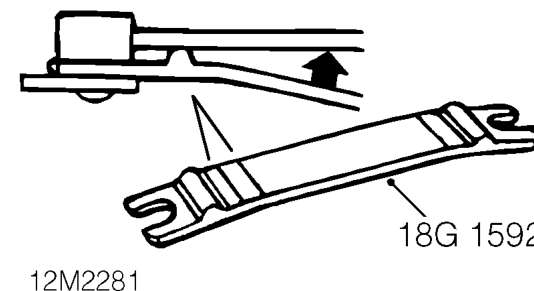

  1. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

1.8 Models

1.8 models – Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

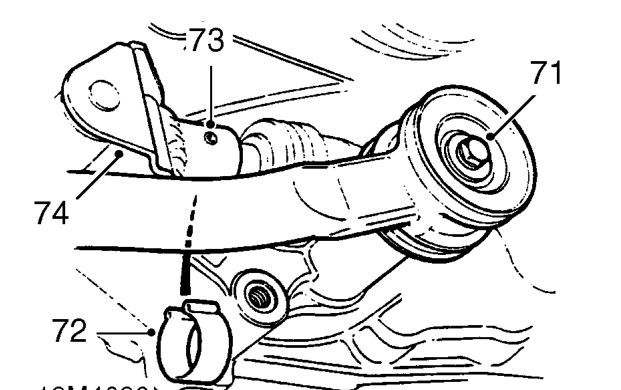

  1. Remove bolt and disconnect gear change steady bar from gearbox. Collect 2 washers.
  2. Remove clip retaining selector rod roll pin.
  3. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
  4. Release selector rod from selector shaft and tie aside.

All models

All models – Release selector rod from selector shaft and tie aside.

1.4 model illustrated

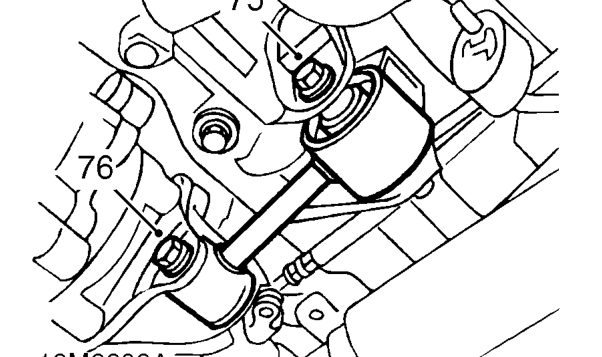

  1. Loosen through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on gearbox/sump.
