Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

See ’R65’, Repairs.

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › See ’R65’, Repairs.
Engine - K16See ’R65’, Repairs. · page 1 of 6

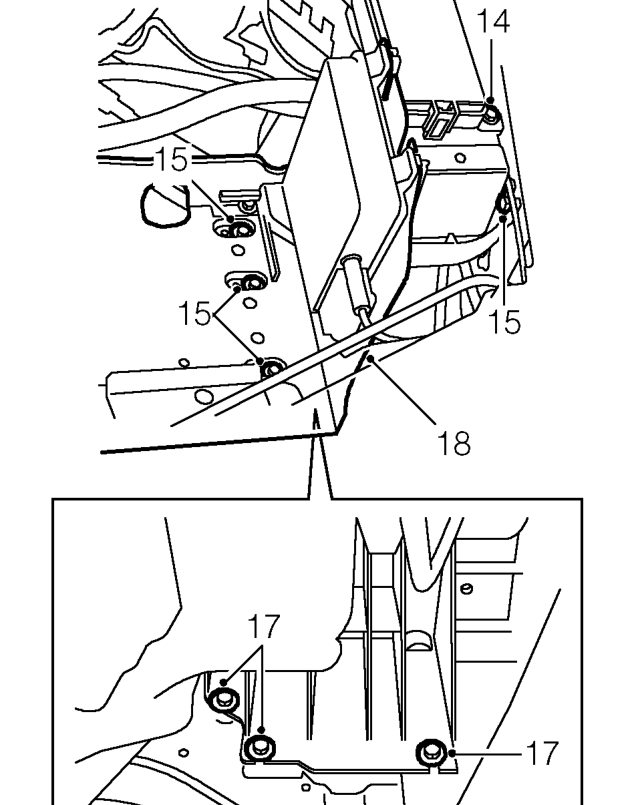

Diagram
  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. Remove battery tray from vehicle.
Remove battery tray from vehicle.

1.4 & 1.6 models illustrated

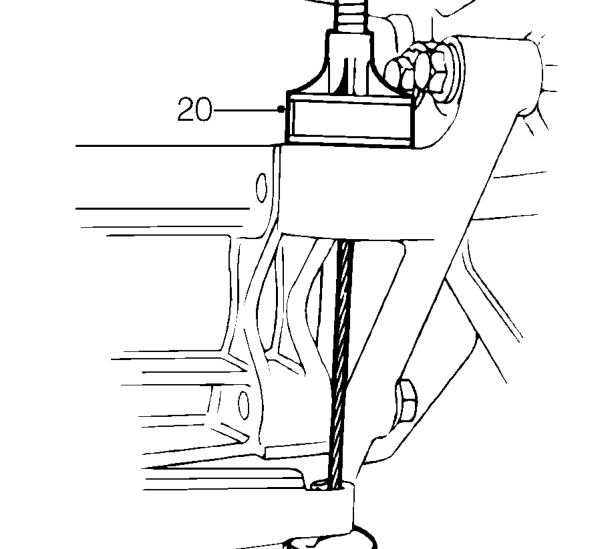

  1. Disconnect clutch cable from clutch release lever.
  2. Release clutch cable from abutment bracket on gearbox and position aside.
  3. Release both drive shafts from gearbox as detailed in Differential oil seal. 1.4 & 1.6 models: MANUAL GEARBOX -

See ’R65’, Repairs.

1.8 models: MANUAL GEARBOX -

See ’PG1’, Repairs.
