Engine - K16Camshaft timing belt upper cover

CAMSHAFT TIMING BELT UPPER COVER

Service repair no - 12.65.41

Remove

  1. Disconnect battery earth lead.

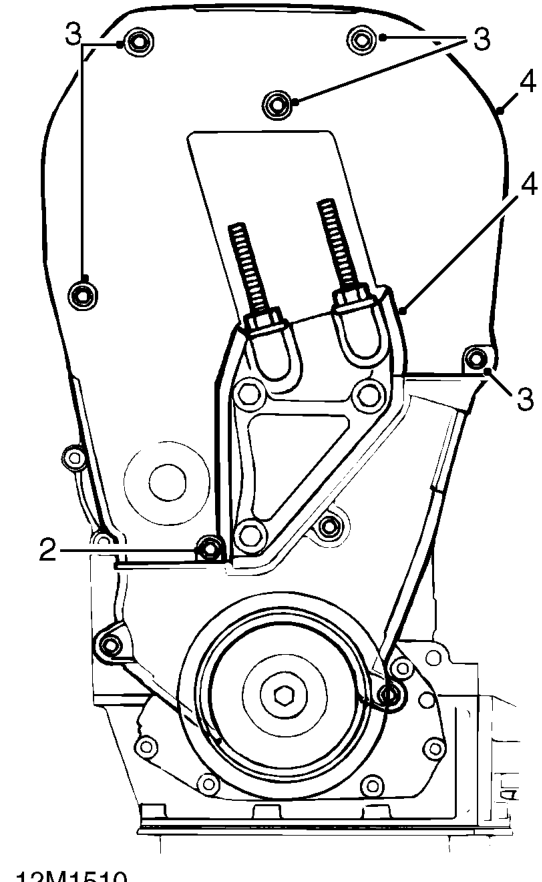

Camshaft timing belt upper cover – Disconnect battery earth lead.
  1. Loosen lower bolt securing camshaft timing belt upper cover to engine.
  2. Remove 5 bolts securing camshaft timing belt upper cover to rear cover.
  3. Remove camshaft timing belt upper cover and rubber seal.

Refit

  1. Clean timing belt upper cover.
  2. Fit timing belt upper cover, ensuring correct position of rubber seal.
  3. Fit 5 bolts securing camshaft timing belt upper cover to rear cover and tighten to 5 Nm.
  4. Tighten bolt securing camshaft timing belt top cover to engine, to 5 Nm.
  5. Connect battery earth lead.

CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove timing belt upper cover. See this section.
  2. Remove crankshaft front pulley. See this section.

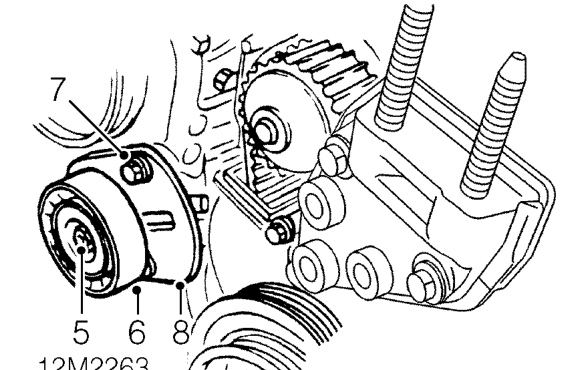

Camshaft timing belt lower cover – Remove crankshaft front pulley. See this section.
  1. Remove nut and collect washer securing power steering pump drive belt tensioner pulley to tension adjuster.
  2. Remove power steering pump tensioner pulley.
  3. Remove 3 bolts securing drive belt tension adjuster to power steering pump mounting bracket.
  4. Remove power steering pump drive belt tension adjuster.
