Engine - K16Torsion damper

TORSION DAMPER

Service repair no - 12.53.13

Remove

  1. Remove automatic gearbox assembly. See AUTOMATIC GEARBOX - ’CVT’, Repairs.
Torsion damper – Remove automatic gearbox assembly. See AUTOMATIC GEARBOX - ’CVT’, Repairs.

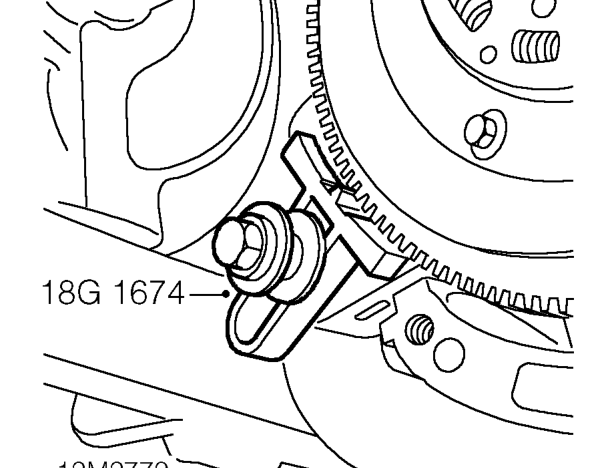

  1. Fit flywheel locking tool 18G 1674 to flywheel.
  2. Fit and tighten bolt securing tool in place.
Torsion damper – Fit and tighten bolt securing tool in place.

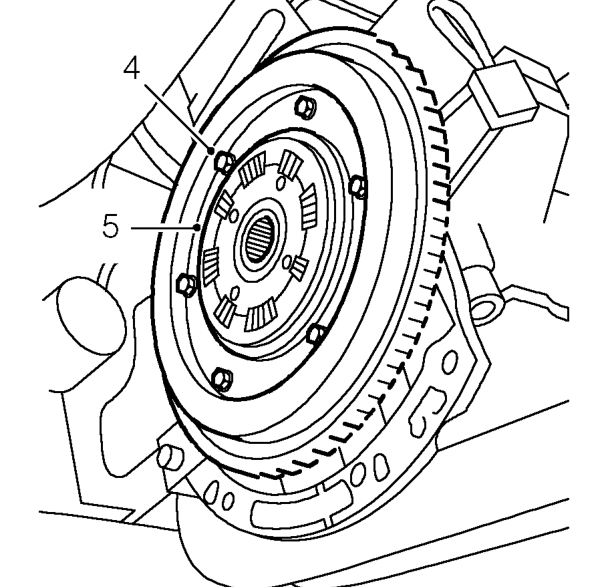

  1. Progressively loosen and then remove 6 bolts securing torsion damper to flywheel.
  2. Remove torsion damper.

Refit

  1. Clean torsion damper and flywheel mating faces.
  2. Position torsion damper to flywheel and finger tighten bolts.
  3. Working in a diagonal sequence, progressively tighten bolts to 22 Nm.
  4. Remove bolt securing flywheel locking tool and remove tool.
  5. Fit automatic gearbox assembly. See AUTOMATIC GEARBOX - ’CVT’, Repairs.
