Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

All engines

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › All engines
Engine - K16All engines · page 1 of 5

All engines

All engines

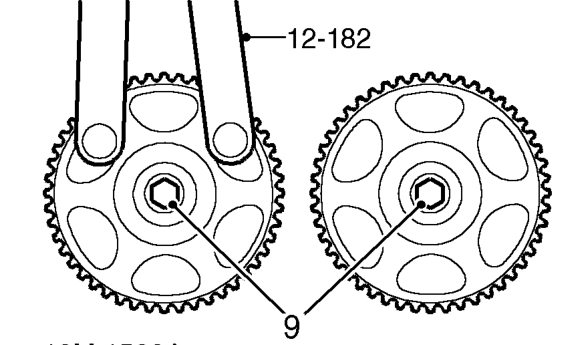

  1. Restrain camshaft gears using tool 12-182 and remove bolts and washers securing camshaft gears to camshafts.
  2. Remove tool 18G 1570 from camshaft gears.
  3. Mark camshaft gears for identification when refitting.
  4. Remove 2 camshaft gears.
All engines – Remove 2 camshaft gears.

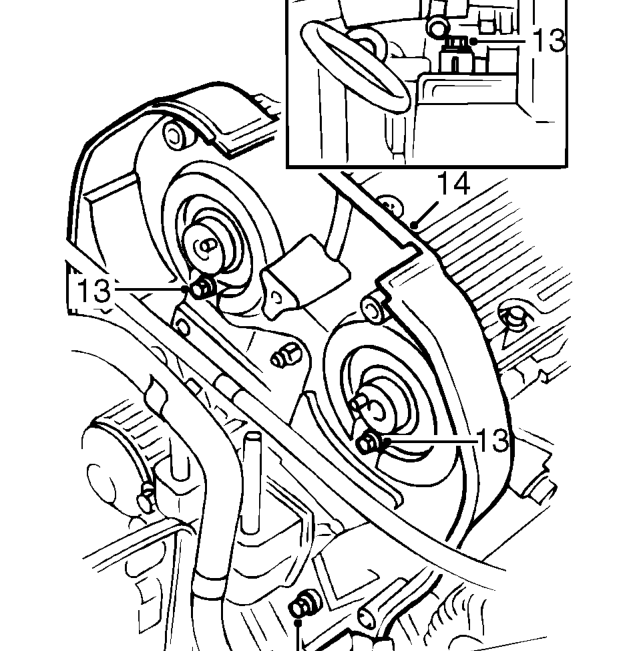

  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
All engines – Remove camshaft timing belt rear cover.

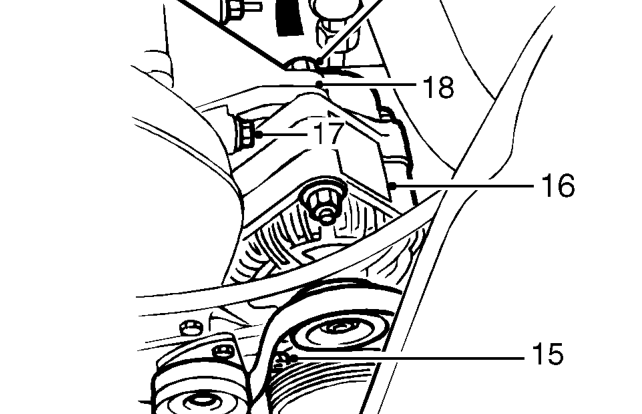

  1. Remove 2 nuts and bolts securing alternator to engine.
  2. Release alternator from mounting brackets.
  3. Remove nut and bolt securing alternator top mounting bracket to cylinder head.
  4. Pivot alternator top mounting bracket out of the way.
All engines – Pivot alternator top mounting bracket out of the way.

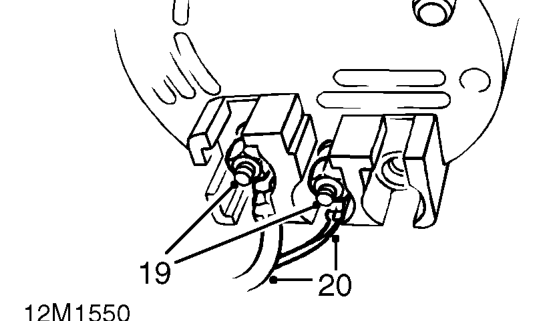

  1. Loosen 2 nuts securing cables to alternator.
  2. Disconnect 2 cables from alternator.
  3. Remove alternator from vehicle.
