Engine RH mounting - 1.6 & 1.8 models

ENGINE RH MOUNTING - 1.6 & 1.8 MODELS

Service repair no - 12.45.31

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

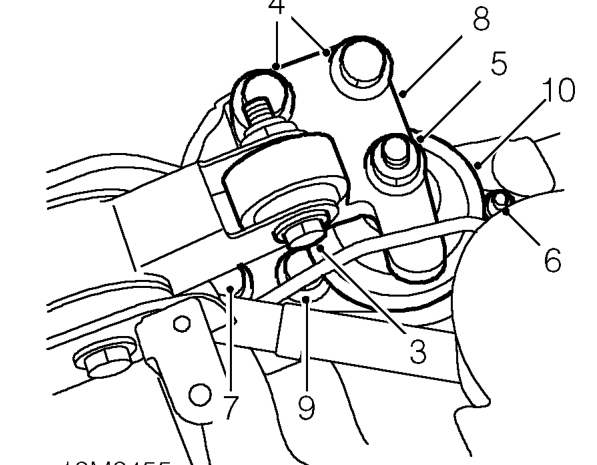

2. Fit wooden block to jack and position jack to support engine.

3. Remove bolt securing RH steady bar to engine mounting bracket.
4. Remove 2 bolts securing mounting bracket to engine.
5. Remove nut securing mounting bracket to engine mounting.
6. Remove nut securing engine mounting and restraint bar to body.
7. Loosen nut securing restraint bar to body and move aside.
8. Remove engine mounting bracket.
9. Remove nut securing engine mounting to body.
10. Remove RH engine mounting.

Refit

1. Fit engine mounting to vehicle and finger tighten rear nut.
2. Fit mounting bracket to engine mounting, steady bar, and engine.
3. Align mounting bracket to engine, fit bolts and tighten to 160 Nm.
4. Align restraint bar and fit and tighten nuts to 45 Nm.
5. Tighten nut securing engine mounting to body to 45 Nm.
6. Fit nut securing engine mounting to mounting bracket and tighten to 85 Nm.
7. Fit bolt securing mounting bracket to steady bar and tighten to 80 Nm.
8. Remove jack.
9. Remove stand(s) and lower vehicle.
