Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

Crankshaft front pulley - 1.4 & 1.6 models

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Crankshaft front pulley - 1.4 & 1.6 models
Engine - K16Crankshaft front pulley - 1.4 & 1.6 models

CRANKSHAFT FRONT PULLEY - 1.4 & 1.6 MODELS

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft front pulley - 1.4 & 1.6 models – Remove starter motor. See ELECTRICAL, Repairs.

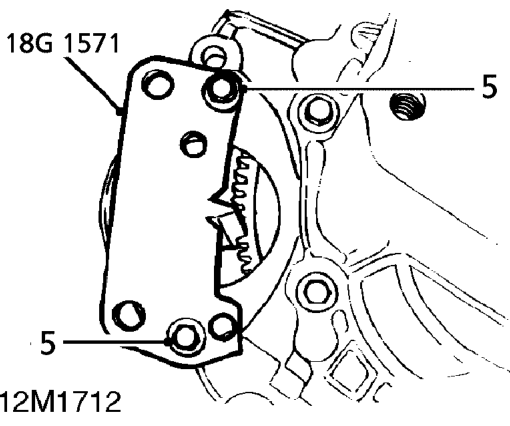

  1. Fit tool 18G 1571 to flywheel housing and secure with 2 bolts.
Crankshaft front pulley - 1.4 & 1.6 models – Fit tool 18G 1571 to flywheel housing and secure with 2 bolts.

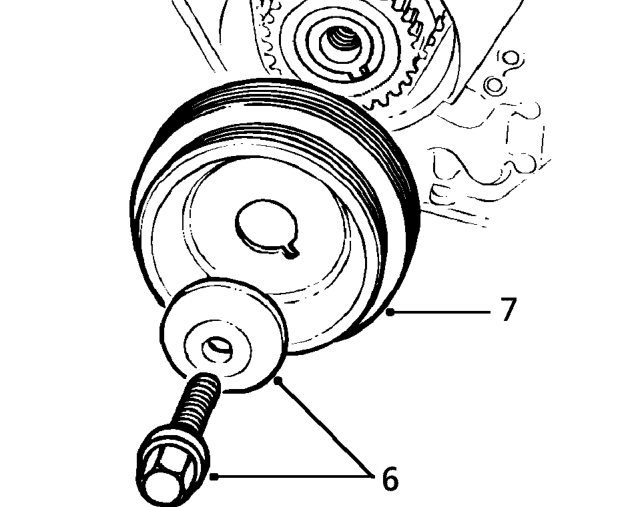

  1. Remove bolt securing pulley to crankshaft and collect washer.
  2. Remove crankshaft pulley.
