1.6 & 1.8 models

Refit

1. Connect hoist to adjustable lifting bracket tool 18G 1598.
2. Using assistance, raise engine and manoeuvre into position in vehicle.
3. Adjust lifting bracket tool so engine is horizontal in engine compartment.

1.6 & 1.8 models

4. Position engine LH mounting to mounting bracket on gearbox, fit bolts and tighten to 100 Nm.
5. Align engine LH mounting to bracket on body, fit through bolt and tighten to 85 Nm.

1.4 models

6. Position engine LH mounting.
7. Fit bolts securing engine LH mounting to mounting bracket and tighten to 55 Nm.
8. Fit bolts securing engine LH mounting to body and tighten to 55 Nm.
9. Align gearbox mounting bracket to engine mounting, fit bolts and tighten to 60 Nm.

All models

10. Fit engine RH mounting. See this section.
11. Lower hoist and disconnect lifting bracket tool 18G 1598 from lifting brackets.
12. Remove bolt securing lifting bracket tool 18G 1572/2 to cylinder head and remove lifting bracket.
13. Remove 2 bolts securing lifting bracket tool 18G 1572/1 to cylinder head and remove lifting bracket.
14. Clean camshaft rear cover plate.
15. Position camshaft rear cover plate to cylinder head, fit bolts and tighten to 25 Nm.
16. 1.6 & 1.8 models: Connect engine steady bar to bracket on sump, fit through bolt and tighten to 80 Nm.
17. 1.4 models: Connect engine steady bar to bracket on gearbox, fit through bolt and tighten to 45 Nm.
18. Tighten through bolt, engine steady bar to subframe, to 80 Nm.
19. Clean gear selector linkage and gear change linkage ball joints.

1.4 & 1.6 Models

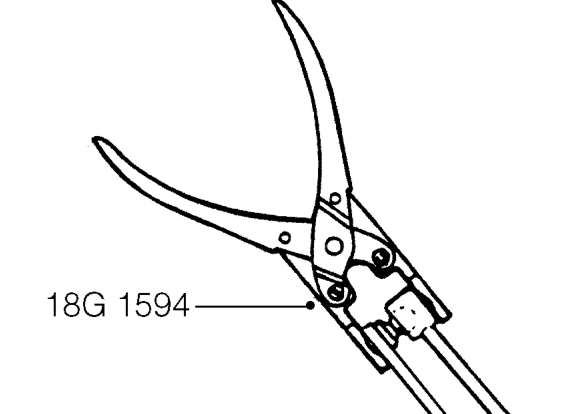

20. Using tool 18G 1594 connect gear selector linkage ball joint to gear selector lever.
21. Using tool 18G 1594 connect gear change linkage ball joint to gear change lever.

1.8 Models

22. Connect selector rod to selector shaft and align holes.
23. Fit NEW roll pin securing selector rod to shaft and fit roll pin retaining clip.
24. Fit washers to steady bar and connect to gearbox.
25. Fit bolt securing steady bar to gearbox and tighten to 60 Nm.

All models

26. Remove caps from air conditioning pipes and compressor.
27. Clean mating faces of air conditioning pipe union and compressor.
28. Lubricate 2 new ’O’ rings with refrigerant oil and fit to compressor.
29. Position air conditioning pipe union to compressor, fit bolt and tighten to 35 Nm.
30. Clean condenser pipe and compressor pipe unions.
31. Lubricate new ’O’ ring with refrigerant oil and fit to condenser pipe.
32. Connect condenser pipe to compressor pipe, fit bolt and tighten to 6 Nm.
