Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

Exhaust camshaft rear oil seal

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Exhaust camshaft rear oil seal
Engine - K16Exhaust camshaft rear oil seal
Diagram

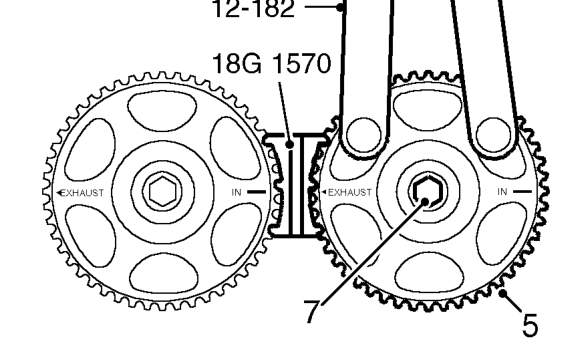

  1. Align camshaft gear timing marks.
  2. Fit camshaft gear to camshaft.
  3. Fit camshaft gear locking tool 18G 1570.
  4. Fit bolt and washer securing camshaft gear to camshaft, restrain gear using tool 12-182 and tighten bolt to: M8 bolt 35 Nm M10 bolt 65 Nm.
  5. Fit new camshaft timing belt. See ENGINE - ’K’ SERIES, Repairs.

EXHAUST CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.08

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Exhaust camshaft rear oil seal – Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

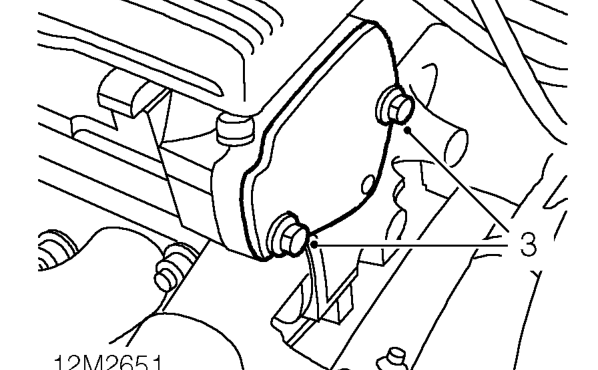

  1. Remove 2 bolts securing rear cover plate and remove plate.
Exhaust camshaft rear oil seal – Remove 2 bolts securing rear cover plate and remove plate.

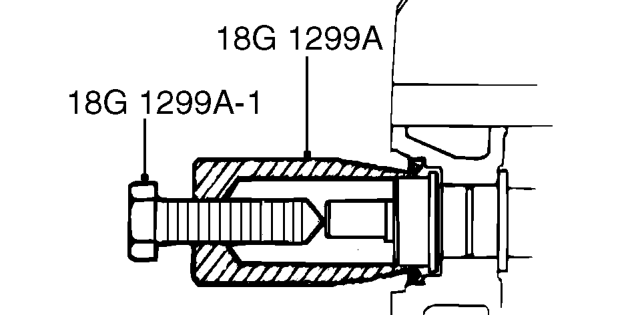

  1. Screw tool 18G 1299A into camshaft rear oil seal.
  2. Tighten centre bolt of tool 18G 1299A-1 to remove seal.
  3. Discard camshaft oil seal.
