Refit - Engines fitted with automatic timing belt tensioner

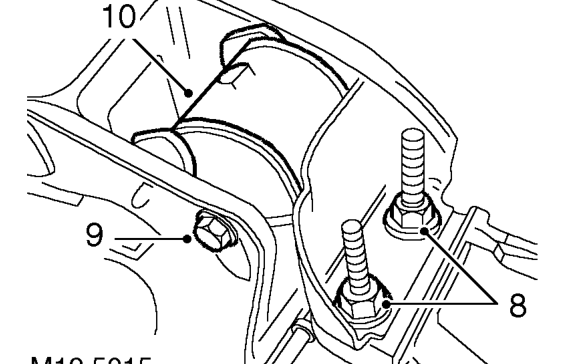

8. Remove and discard 2 nuts securing RH engine mounting to engine.
9. Remove through bolt securing RH engine mounting to body.
10. Remove RH engine mounting.
11. Remove camshaft timing belt lower cover. See this section.
12. If camshaft timing belt is to be re-used, mark direction of belt rotation using chalk.

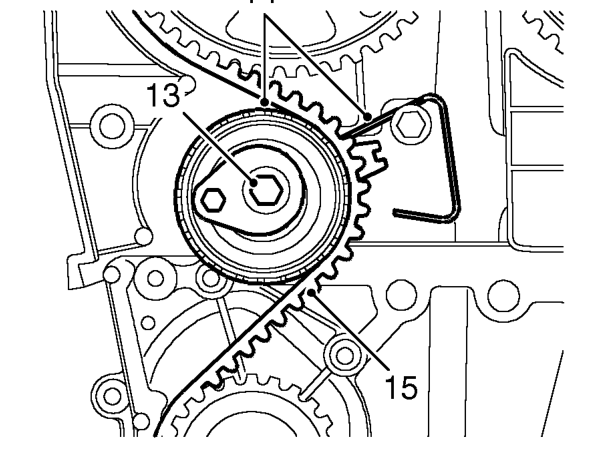

13. Remove and discard timing belt tensioner bolt.
14. Disengage index wire from its fitted position whilst at the same time removing the timing belt tensioner.
15. Remove camshaft timing belt.

CAUTION: Ease timing belt off timing gears using fingers only. Metal levers may damage the belt and gears. Do not rotate the crankshaft with the timing belt removed and the cylinder head fitted.

Refit - Engines fitted with automatic timing belt tensioner

1. Clean crankshaft pulley, timing belt gears, coolant pump drive gear and tensioner pulley.

CAUTION: If the sintered gears have been subjected to prolonged oil contamination, they must be soaked in a solvent bath and then thoroughly washed in clean solvent before refitting. Because of the porous construction of sintered material, oil impregnated in the gears will emerge and contaminate the belt.

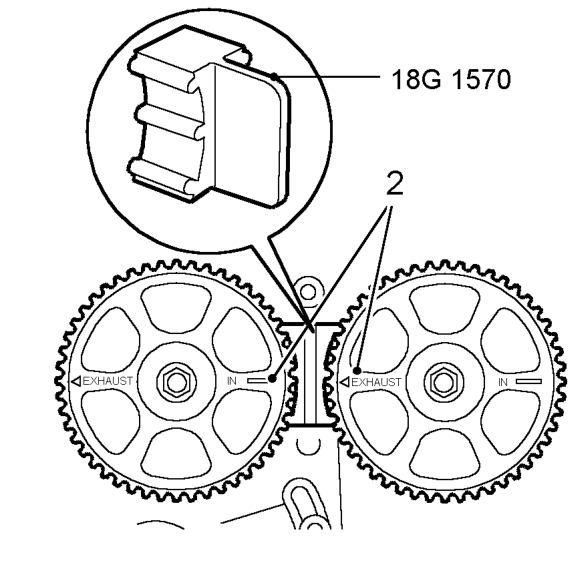

2. Check correct alignment of camshaft timing marks for 90° BTDC and that tool 18G 1570 is locking camshaft gears.
