Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

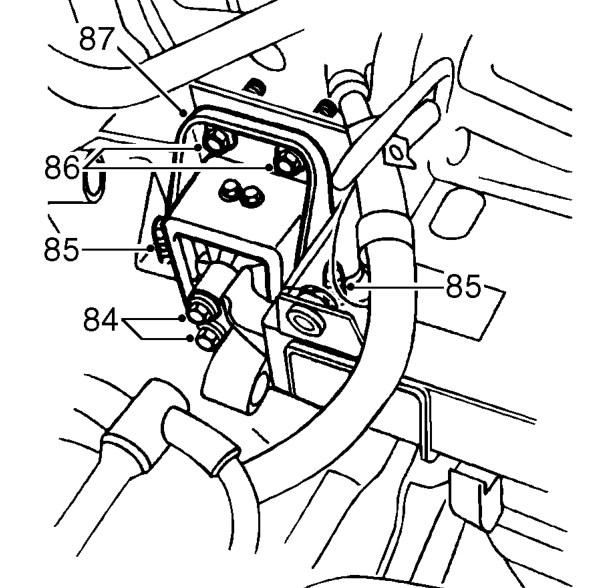

1.4 models

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › 1.4 models
Engine - K161.4 models

1.4 models

1.4 models
  1. Remove 2 bolts securing engine LH mounting to gearbox mounting bracket.
  2. Remove 2 bolts securing engine LH mounting to body.
  3. Remove 2 bolts securing engine LH mounting to mounting bracket.
  4. Remove engine LH mounting.

1.6 & 1.8 models

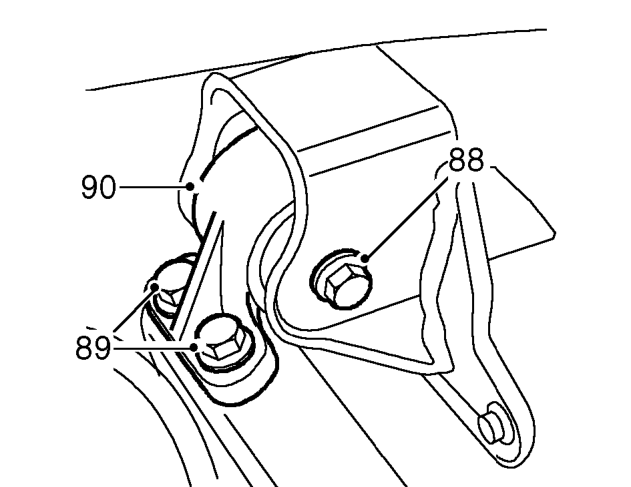

1.6 & 1.8 models – Remove engine LH mounting.
  1. Remove through bolt securing engine LH mounting to bracket on body.
  2. Remove 2 bolts securing engine LH mounting to mounting bracket on gearbox.
  3. Remove engine LH mounting.

All models

  1. Adjust tool 18G 1598 to tilt engine with the gearbox as low as possible.
  2. Using assistance, manoeuvre engine and gearbox from vehicle.

CAUTION: Take care not to damage the ABS modulator or brake pipes when removing the engine.

  1. Lower engine and gearbox assembly and disconnect hoist from adjustable lifting bracket.
