Engine RH mounting - 1.4 models

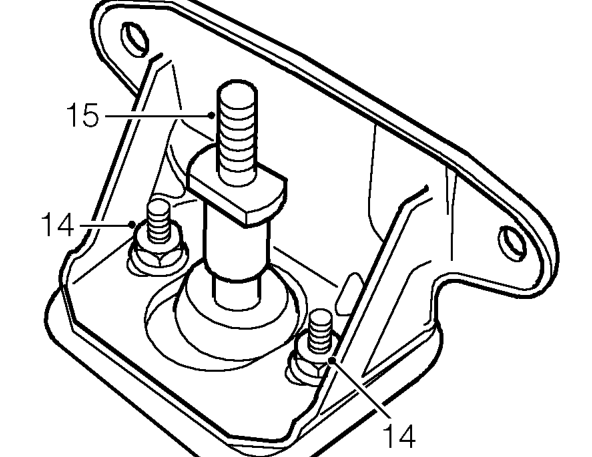

14. Remove 2 nuts securing engine mounting to bracket.
15. Remove engine mounting.

Refit

1. Fit engine mounting to mounting bracket, fit nuts but DO NOT tighten.
2. Position engine mounting assembly in vehicle.
3. Fit bolt securing lower half of engine mounting bracket to body and tighten to 55 Nm.
4. Fit 2 bolts securing upper half of engine mounting bracket to body and tighten to 55 Nm.
5. Raise engine and gearbox assembly and locate gearbox mounting bracket on engine mounting.
6. Fit NEW Nyloc nut securing gearbox mounting bracket to engine mounting and tighten to 160 Nm.
7. Tighten 2 nuts securing engine mounting to mounting bracket to 45 Nm.
8. Position modulator mounting bracket, fit and tighten nuts and bolts.
9. Tighten bolt securing modulator mounting bracket and engine mounting bracket to body to 55 Nm.
10. Fit ABS modulator. See BRAKES, Repairs.
11. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
12. Remove stand(s) and lower vehicle.

ENGINE RH MOUNTING - 1.4 MODELS

Service repair no - 12.45.31

Remove

1. Disconnect battery earth lead.
2. Fit wooden block to jack and position jack to support engine.

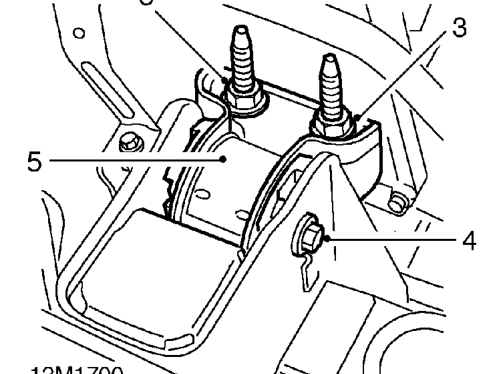

3. Remove and discard 2 nuts securing engine mounting to engine.
4. Remove through bolt securing engine mounting to body.
5. Remove engine mounting.
6. Remove 2 rubber washers from mounting.

Refit

1. Fit rubber washers to engine mounting.
2. Fit engine mounting to body and engine.
3. Fit through bolt securing engine mounting to body, but do not tighten.
4. Fit 2 new nuts securing engine mounting to engine and tighten to 100 Nm.
5. Tighten through bolt securing engine mounting to body, to 80 Nm.
6. Lower jack supporting engine and remove from beneath vehicle.
7. Connect battery earth lead.
