Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

Engines fitted with manual timing belt tensioner

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Engines fitted with manual timing belt tensioner
Engine - K16Engines fitted with manual timing belt tensioner

Engines fitted with manual timing belt tensioner

  1. Fit camshaft timing belt tensioner to cylinder head.
  2. Fit tensioner pulley Allen bolt.
  3. Connect tensioner spring to tensioner and to stud on cylinder head.
  4. Push tensioner pulley down to fully OFF position, fit and tighten backplate bolt to 10 Nm.

All engines

  1. Fit new camshaft timing belt. See this section.
  2. Remove stand(s) and lower vehicle.
  3. Refill cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
  4. Connect battery earth lead.
  5. Adjust throttle cable. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

CYLINDER HEAD GASKET - MODELS WITH AIR CONDITIONING

Service repair no - 12.29.02.20

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove and discard camshaft timing belt. See this section.
  2. Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.

Engines fitted with manual timing belt tensioner

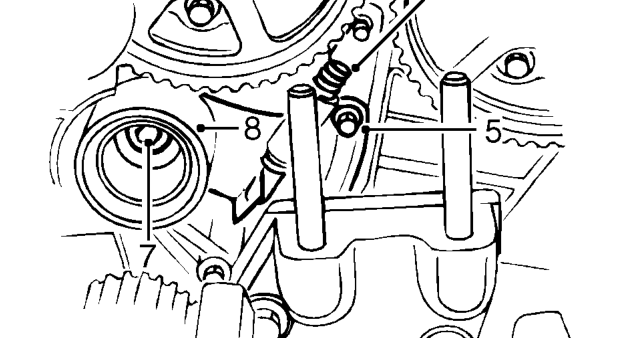

Engines fitted with manual timing belt tensioner – Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
  1. Remove bolt securing camshaft timing belt tensioner backplate to cylinder head.
  2. Disconnect camshaft timing belt tensioner spring from stud on cylinder head.
  3. Remove Allen bolt securing camshft timing belt tensioner pulley to cylinder head.
  4. Remove camshaft timing belt tensioner.
