ENGINE STEADY BAR - 1.4 MODELS

Service repair no - 12.45.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Engine steady bar - 1.4 models – Raise front of vehicle.
  1. Remove through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on gearbox.
  3. Remove engine steady bar.

Refit

  1. Position engine steady bar to subframe and fit through bolt.
  2. Fit and tighten through bolt securing steady bar to bracket on gearbox to 45 Nm.
  3. Tighten through bolt securing steady bar to subframe, to 80 Nm.
  4. Remove stand(s) and lower vehicle.

ENGINE STEADY BAR - 1.6 & 1.8 MODELS

Service repair no - 12.45.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

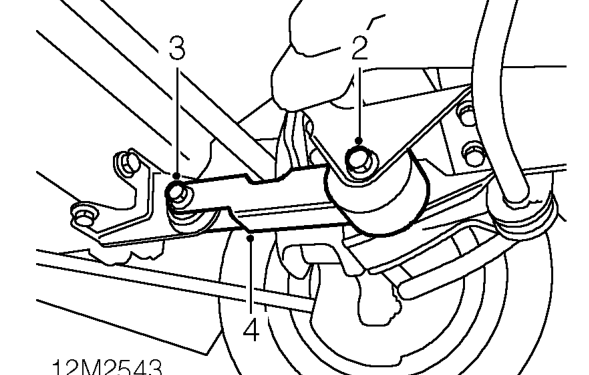

Engine steady bar - 1.6 & 1.8 models – Raise front of vehicle.
  1. Remove through bolt securing engine steady bar to subframe.
  2. Remove through bolt securing engine steady bar to bracket on sump.
  3. Remove engine steady bar.

Refit

  1. Position engine steady bar to subframe and fit through bolt.
  2. Fit and tighten through bolt securing steady bar to bracket on sump to 45 Nm.
  3. Tighten through bolt securing steady bar to subframe to 80 Nm.
  4. Remove stand(s) and lower vehicle.
