FLYWHEEL - 1.8 MODELS

Service repair no - 12.53.07

Remove

  1. Remove clutch assembly. See CLUTCH, Repairs.
  2. Leave tool 18G 1674 attached to cylinder block.
  3. Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

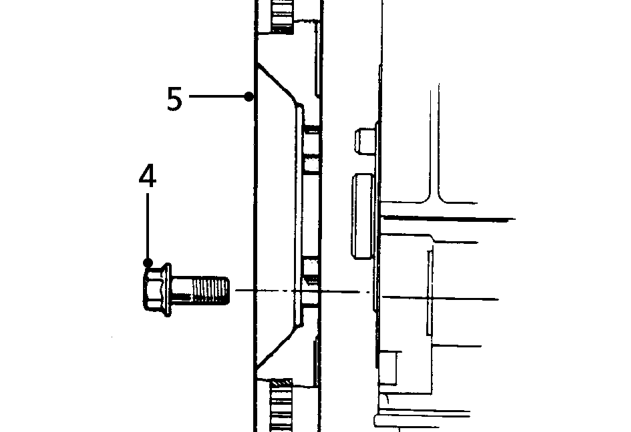

Flywheel - 1.8 models – Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove and discard 6 bolts securing flywheel to crankshaft.
  2. Remove flywheel from crankshaft.

Refit

  1. Using a tap, clean adhesive from threads of flywheel bolt holes in crankshaft.
  2. Clean flywheel and mating face of crankshaft.
  3. Fit flywheel to crankshaft.
  4. Fit NEW bolts securing flywheel to crankshaft and working in a diagonal sequence tighten bolts to 85 Nm.
  5. Fit crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Fit clutch assembly. See CLUTCH, Repairs.
