Crankshaft front pulley - 1.8 models

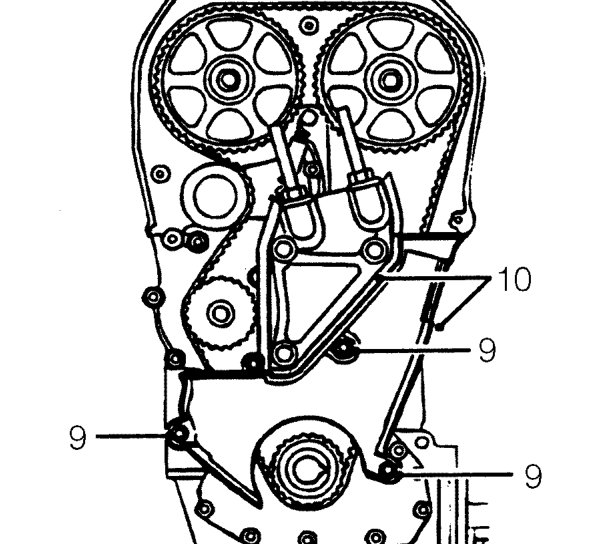

9. Remove 3 bolts securing camshaft timing belt lower cover to engine.
10. Remove camshaft timing belt lower cover and rubber seal.

Refit

1. Clean timing belt lower cover.
2. Fit timing belt lower cover ensuring correct position of rubber seal.
3. Fit bolts securing timing belt lower cover to engine and tighten to 5 Nm.
4. Position drive belt tension adjuster to power steering pump bracket, fit bolts and tighten to 25 Nm.
5. Fit power steering pump tensioner pulley and secure with washer and nut.
6. Fit crankshaft front pulley. See this section.
7. Fit timing belt upper cover. See this section.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.

CRANKSHAFT FRONT PULLEY - 1.8 MODELS

Service repair no - 12.21.01

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
4. Remove starter motor. See ELECTRICAL, Repairs.

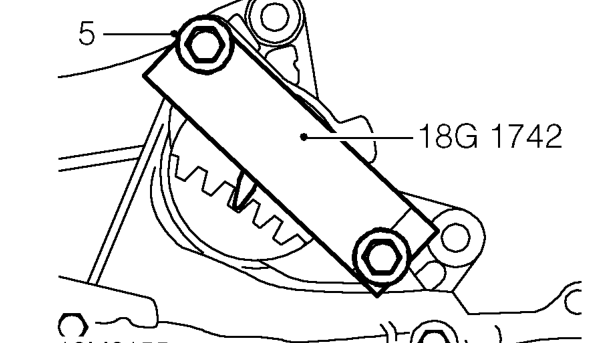

5. Fit flywheel locking tool 18G 1742 to flywheel housing and secure with 2 bolts.
