Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

All engines

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › All engines
Engine - K16All engines · page 1 of 6

All engines

All engines

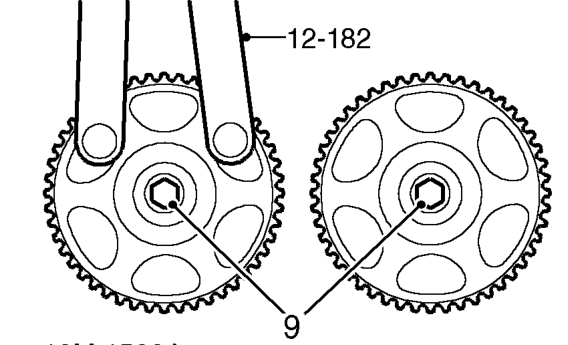

  1. Restrain camshaft gears using 12-182 and remove bolts and washers securing camshaft gears to camshafts.
  2. Remove camshaft gear locking tool 18G 1570.
  3. Mark camshaft gears for identification when refitting.
  4. Remove 2 camshaft gears.
All engines – Remove 2 camshaft gears.

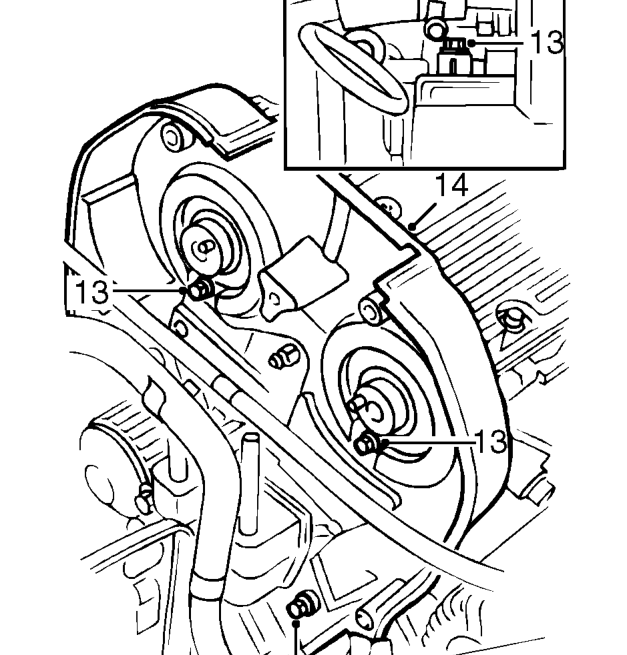

  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
All engines – Remove camshaft timing belt rear cover.

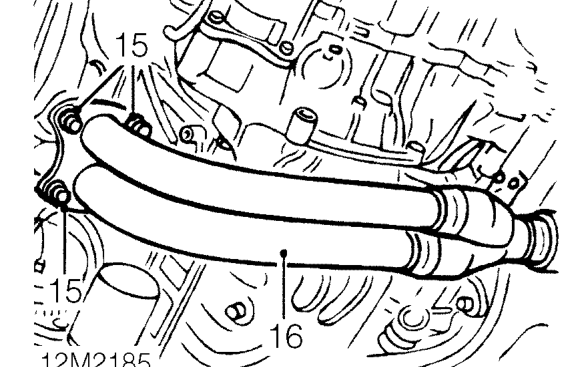

  1. Remove 4 nuts securing exhaust front pipe to exhaust manifold.
  2. Release exhaust front pipe from exhaust manifold.
  3. Remove and discard exhaust manifold flange gasket.
All engines – Remove and discard exhaust manifold flange gasket.

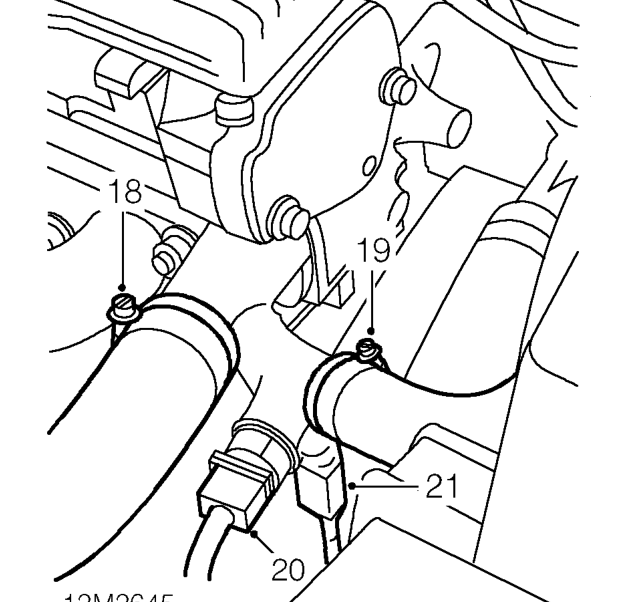

  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnect coolant hose from coolant outlet elbow.
  3. Disconnect multiplug from ECT sensor.
  4. Disconnect multiplug from engine coolant temperature gauge sensor.
