Engine - K16All engines · page 3 of 6
Diagram

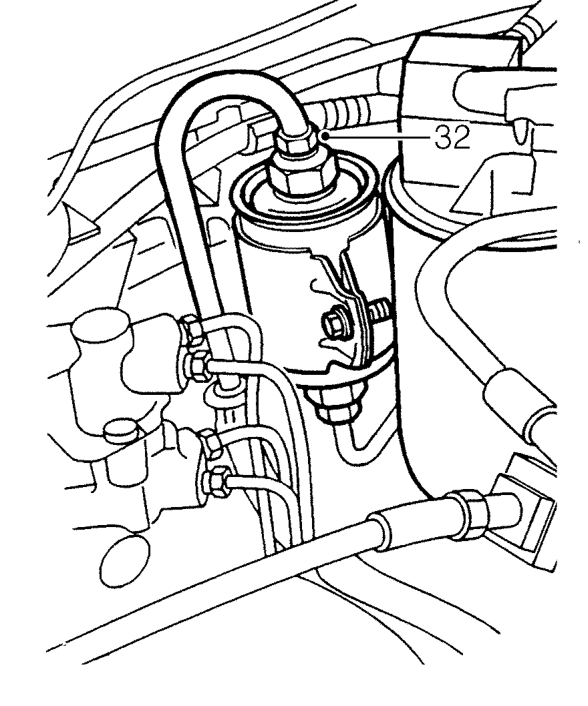

  1. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

  1. Tighten fuel filter union to 28 Nm.
Tighten fuel filter union to 28 Nm.

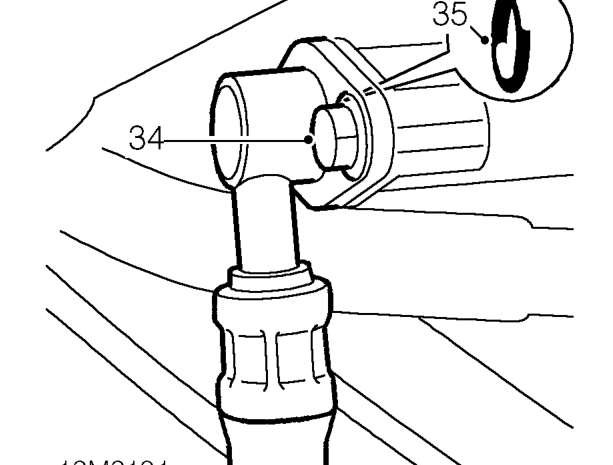

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release pipe from fuel rail and remove and discard ’O’ ring.
Release pipe from fuel rail and remove and discard ’O’ ring.

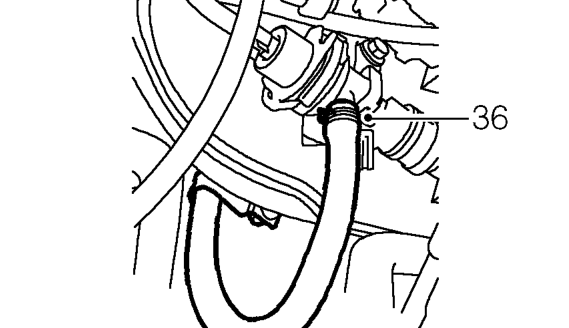

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.
