ENGINE LH MOUNTING - 1.6 & 1.8 MODELS

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit wooden block to jack and position jack to support gearbox.

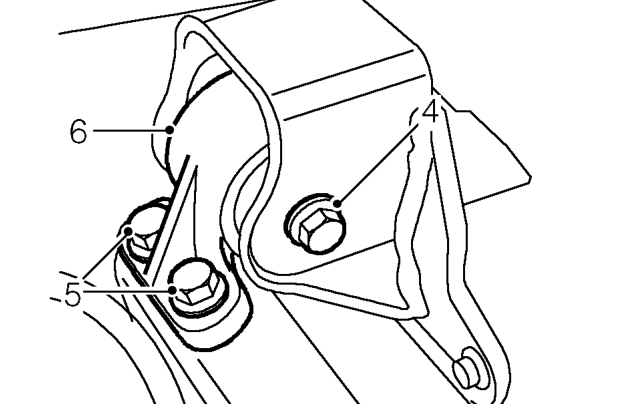

Engine lh mounting - 1.6 & 1.8 models – Fit wooden block to jack and position jack to support gearbox.
  1. Remove through bolt securing engine mounting to bracket on body.
  2. Remove 2 bolts securing engine mounting to mounting bracket on gearbox.
  3. Remove engine mounting.

Refit

  1. Position engine mounting to body and gearbox mounting brackets.
  2. Fit bolts securing engine mounting to bracket on gearbox and tighten to 100 Nm.
  3. Fit through bolt securing engine mounting to bracket on body and tighten to 85 Nm.
  4. Lower jack supporting engine and remove from beneath vehicle.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Remove stand(s) and lower vehicle.

ENGINE LH MOUNTING - AUTOMATIC GEARBOX MODELS WITHOUT ABS

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit wooden block to jack and position jack to support engine.

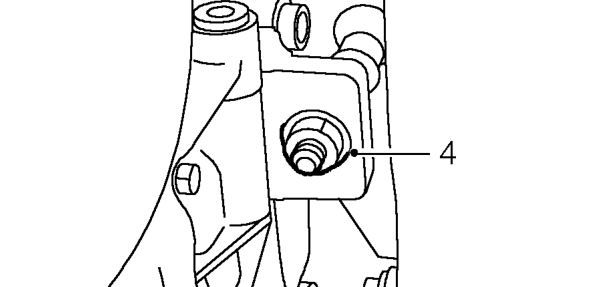

Engine lh mounting - automatic gearbox models without abs – Fit wooden block to jack and position jack to support engine.
  1. Remove and discard nut securing gearbox mounting bracket to engine.
  2. Lower engine and gearbox from engine mounting.
