ENGINE LH MOUNTING - 1.4 MODELS

Service repair no - 12.45.30

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Fit block to jack and position jack to support engine.
3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

4. Disconnect clutch cable from clutch release lever.
5. Release clutch cable from abutment bracket on gearbox and position aside.

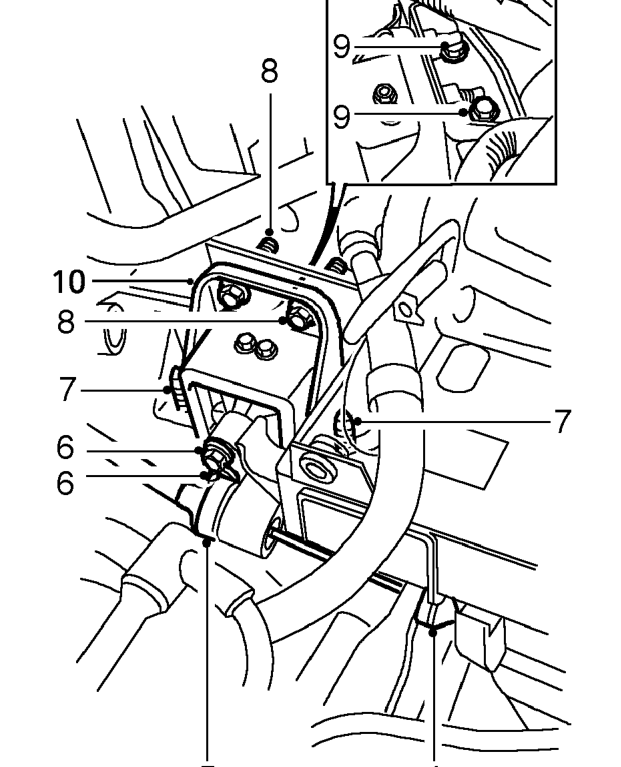

6. Remove 2 bolts securing engine mounting to gearbox mounting bracket.
7. Remove 2 bolts securing engine mounting to body.
8. Remove 2 bolts securing engine mounting to mounting bracket
9. Loosen 2 bolts securing engine mounting bracket to body.
10. Carefully lower engine and remove engine mounting.

Refit

1. Position engine mounting and raise engine and gearbox assembly.
2. Fit bolts securing engine mounting to body and tighten to 55 Nm.
3. Fit bolts securing engine mounting to bracket on body and tighten to 55 Nm.
4. Align gearbox mounting bracket to engine mounting, fit bolts and tighten to 60 Nm.
5. Tighten bolts securing bracket to body, to 55 Nm.
6. Lower jack supporting engine, and remove from beneath vehicle.
7. Feed clutch cable through abutment bracket and connect to clutch release lever.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
10. Remove stand(s) and lower vehicle.
