37. Release clip and disconnect purge hose from throttle housing.
38. Release throttle cable adjusting nut from abutment bracket.

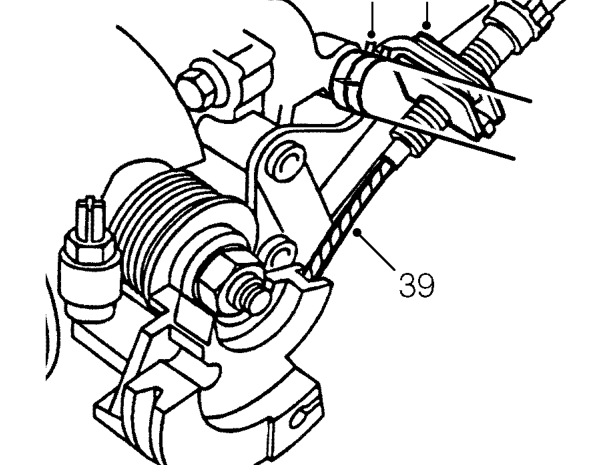

39. Release throttle cable from throttle cam.

40. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.

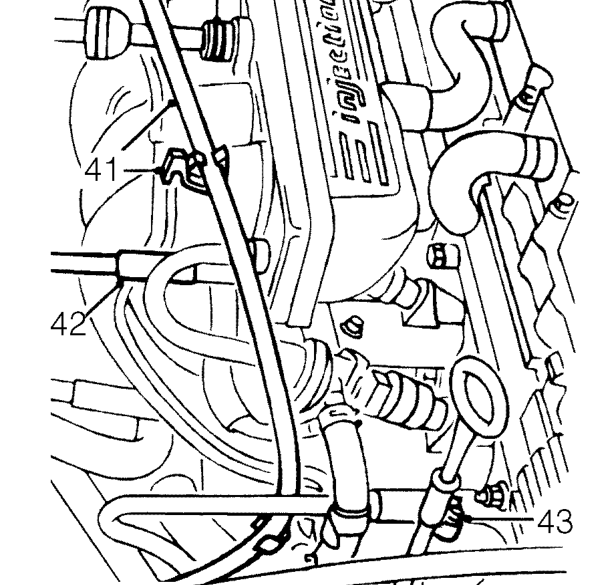

41. Release throttle cable from clip on inlet manifold.
42. Disconnect vacuum hose from inlet manifold.
43. Loosen clip and disconnect expansion tank hose from inlet manifold.
44. Remove camshaft cover. See this section.

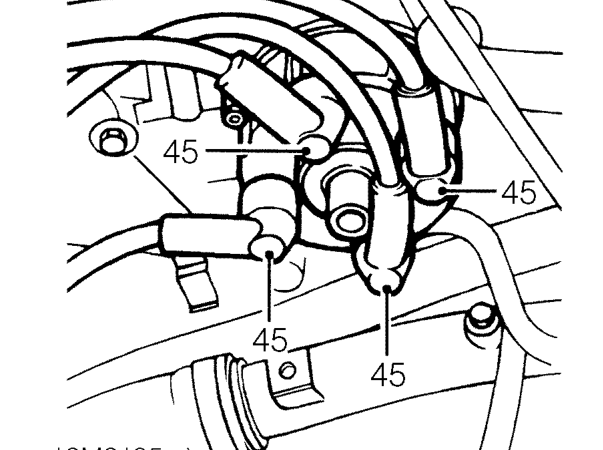

45. Disconnect h.t. leads from distributor cap.
46. Remove h.t. leads.
