Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

All engines (page 2 of 6)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K16All engines · page 2 of 6

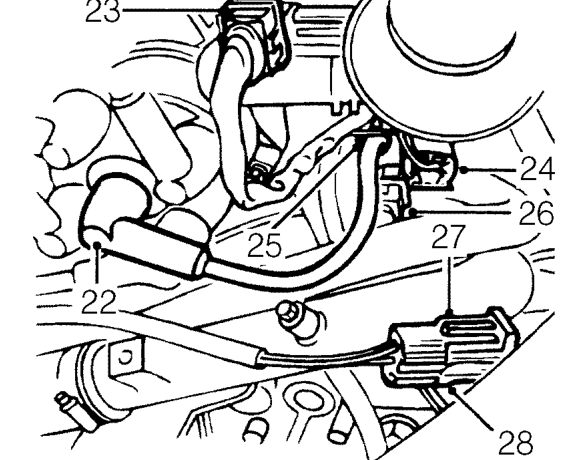

Diagram
  1. Disconnect coil h.t. lead from distributor.
  2. Disconnect multiplug from TP sensor.
  3. Disconnect multiplug from injector harness.
  4. Release coil h.t. lead from clip on bracket.
  5. Disconnect multiplug from IAT sensor.
  6. Disconnect HO2S multiplug from engine harness.
  7. Release HO2S multiplug from clip on bracket.

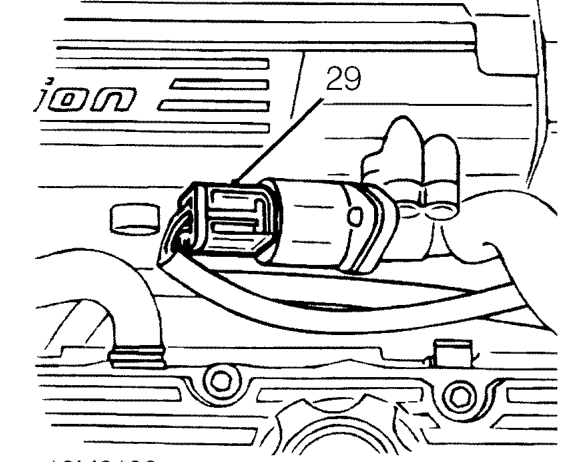

Release HO2S multiplug from clip on bracket.
  1. Disconnect multiplug from IACV.
Disconnect multiplug from IACV.

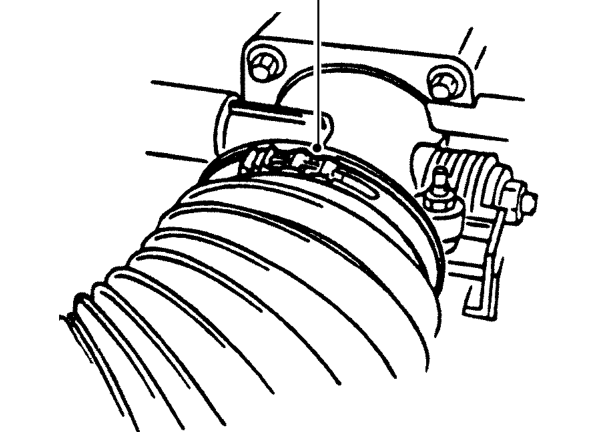

  1. Release clip and disconnect air intake pipe from throttle body.
  2. Position absorbent cloth around fuel filter outlet union.
