Rover 200 Workshop Manual (1995-1999)06 · Engine - K16
06 · Engine

See ’R65’, Repairs. (page 2 of 6)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K16See ’R65’, Repairs. · page 2 of 6

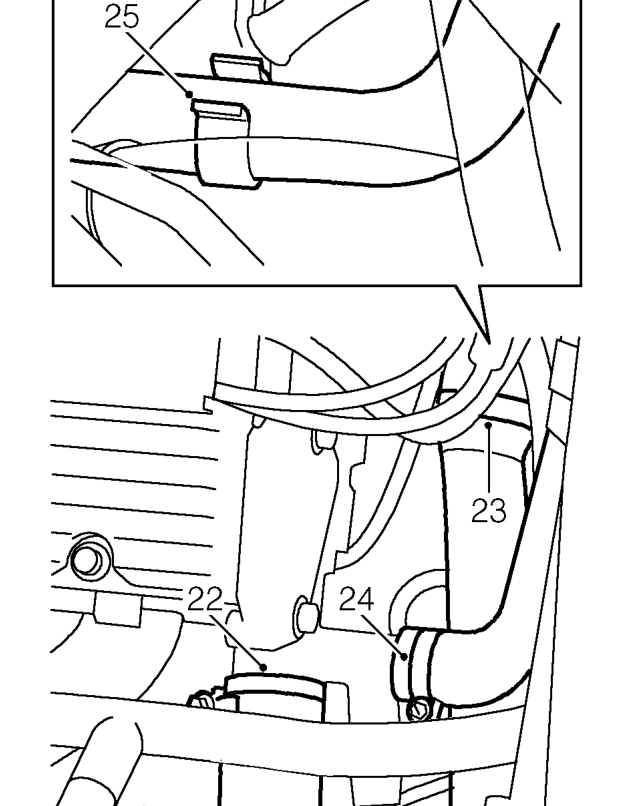

Diagram
  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnnect radiator bottom hose from coolant rail.
  3. Loosen clip and disconnect heater hose from coolant outlet elbow.

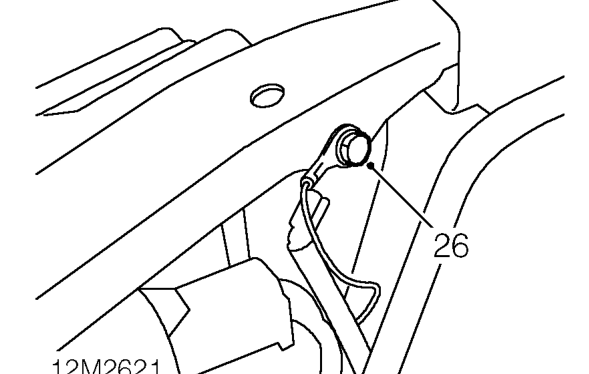

  4. Release heater hose from clip on coolant rail and position aside.
Release heater hose from clip on coolant rail and position aside.

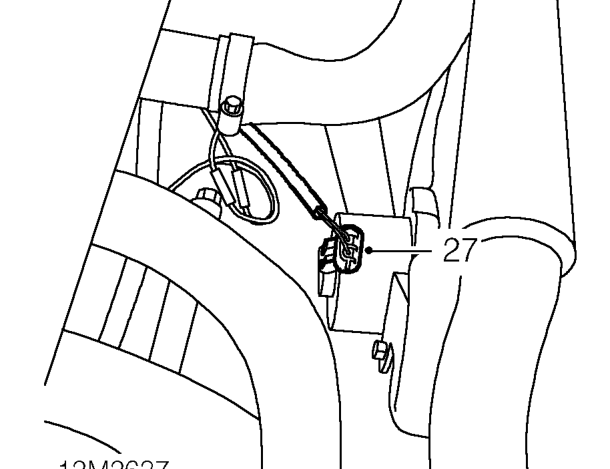

  1. Remove bolt securing earth lead to bonnet locking platform.
Remove bolt securing earth lead to bonnet locking platform.
  1. Disconnect multiplug from radiator cooling fan.
