Panel repairs1.4 and 1.6 models
Diagram

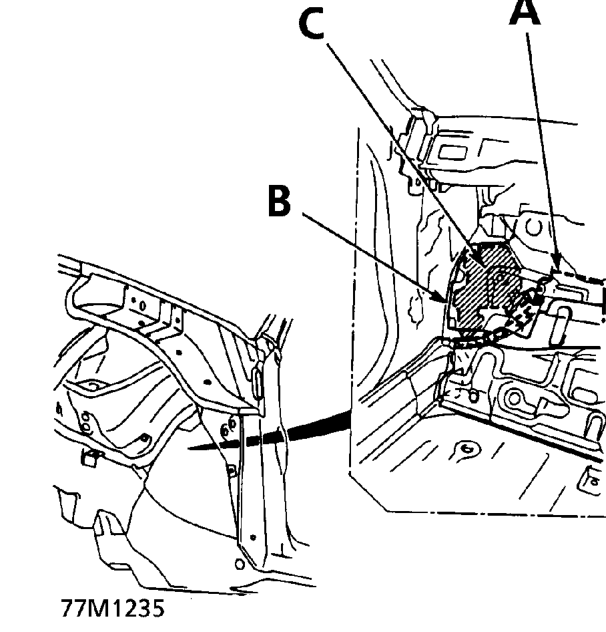

A. Front side frame B. Insulator Panel C. Dashboard insulator

  1. Remove the front side frame.

NOTE: It is not necessary to separate the front inner wing from the front side frame if the inner wing/spring housing is to be replaced also.

  • Centre punch around the spot weld imprints on the inner wing, lower dashboard, front floor and tunnel frame.
  • Using a spot cutter, drill holes in the spot welded areas.
  • Peel off the welding flange using a chisel.

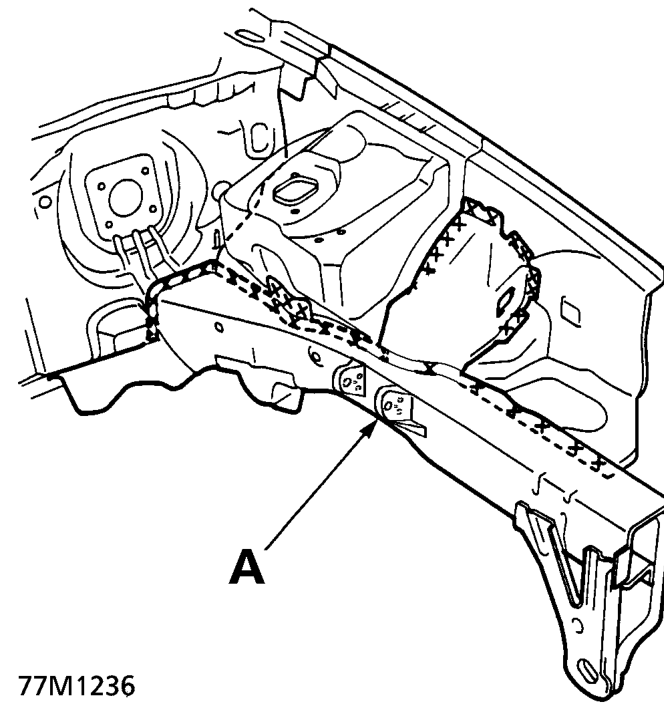

Remove the front side frame.

1.4 and 1.6 models

A. Front side Frame
