FRONT SIDE OUTRIGGERS

Description

The front side outriggers connect the front side frames to the body and are vital to the rigidity of the entire body frame. Pay particular attention when welding the front side outriggers from beneath the front floor and side sill.

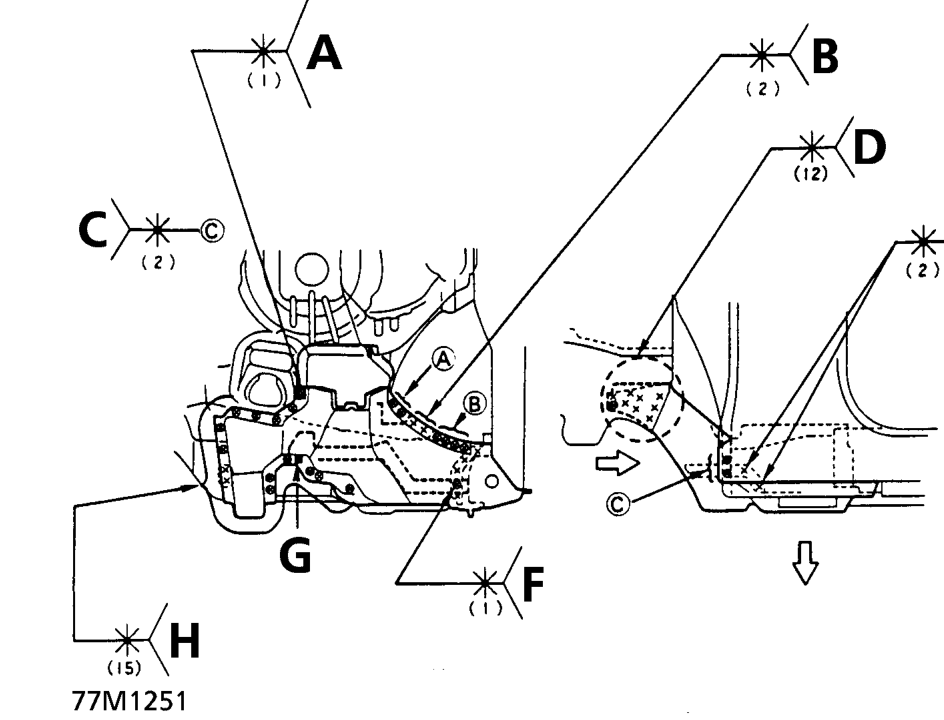

Mass Production Body Welding Diagram

Mass production body welding diagram – The front side outriggers connect the front side frames to the body and are vital to the r

A. Front side Outrigger, Steering joint cover, Dashboard lower and Dashboard lower insulator panel (4-plate welding) B. Front side outrigger and Dashboard lower C. Front side outrigger, Front pillar stiffener and Outer panel D. Front side outrigger and Front side frame E. Front side outrigger (Rear support stiffener and inside sill extension) F. Front side outrigger, Rear support stiffener and inside sill extension G. 4-plate welding H. Front side outrigger, Dashboard lower and Dashboard lower cross member
