1.4 and 1.6 models
- Make
- Rover
- Model
- 400 Body Repair Manual
- Year
- 1995–2000
- Section
- Repairs › 1.4 and 1.6 models
Panel repairs1.4 and 1.6 models · page 1 of 2
- Check the dimensions, temporarily install the bonnet, wing and headlight, and check for differences in level and clearance.

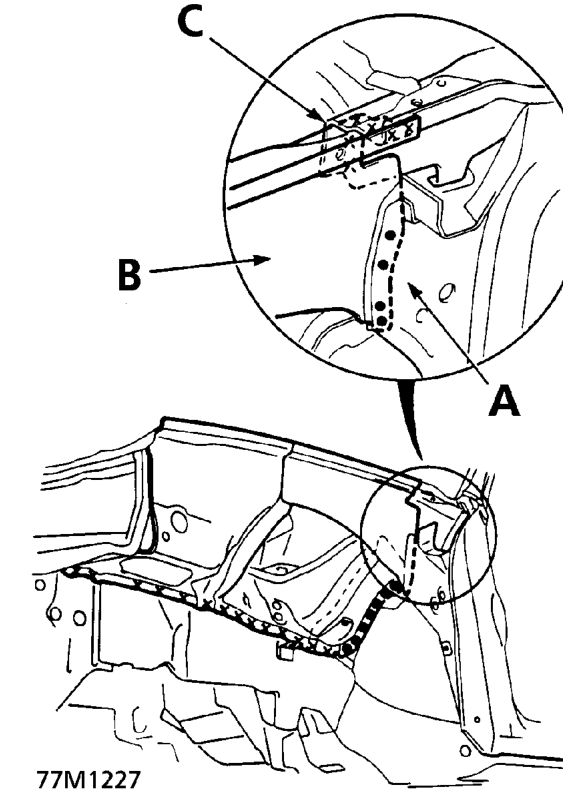

- Perform the main welding.
- Weld as much as possible with the jig still mounted.
WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.
- Make 20% to 30% more spot welds than there were holes drilled.

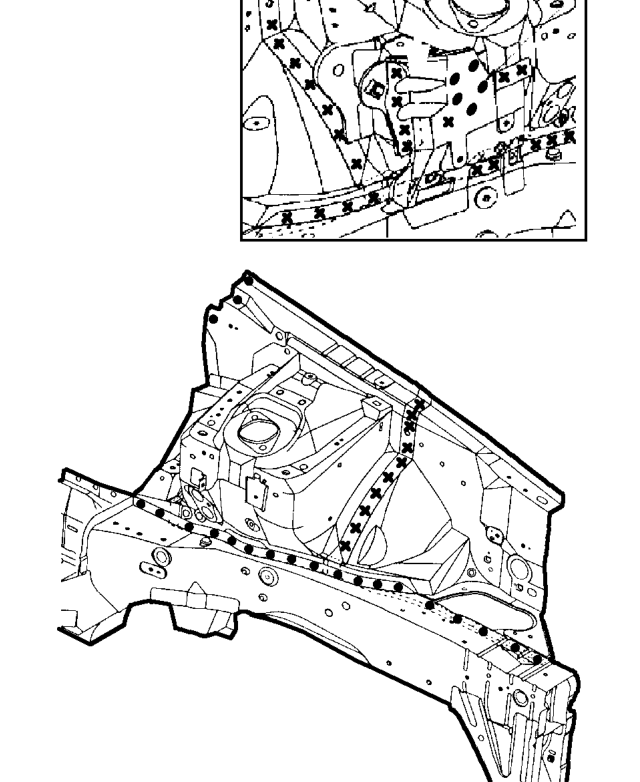

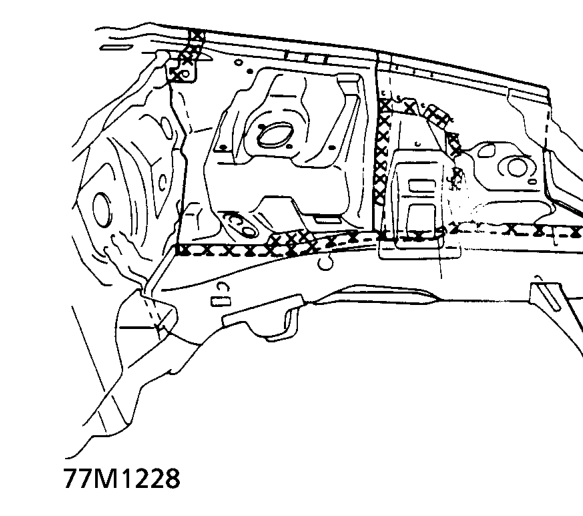

A. Front Pillar Inner Lower B. New Spring Housing C. Dashboard upper side member
1.4 and 1.6 models
2.0 petrol and diesel models
