Roof panel

ROOF PANEL

Description

Deformation of the roof panel is highly noticeable in terms of the vehicle’s outer appearance. Before replacing the roof rail, make sure that the body is horizontal. Before welding the roof panel, adjust the roof rail flanges so that they contact the roof panel.

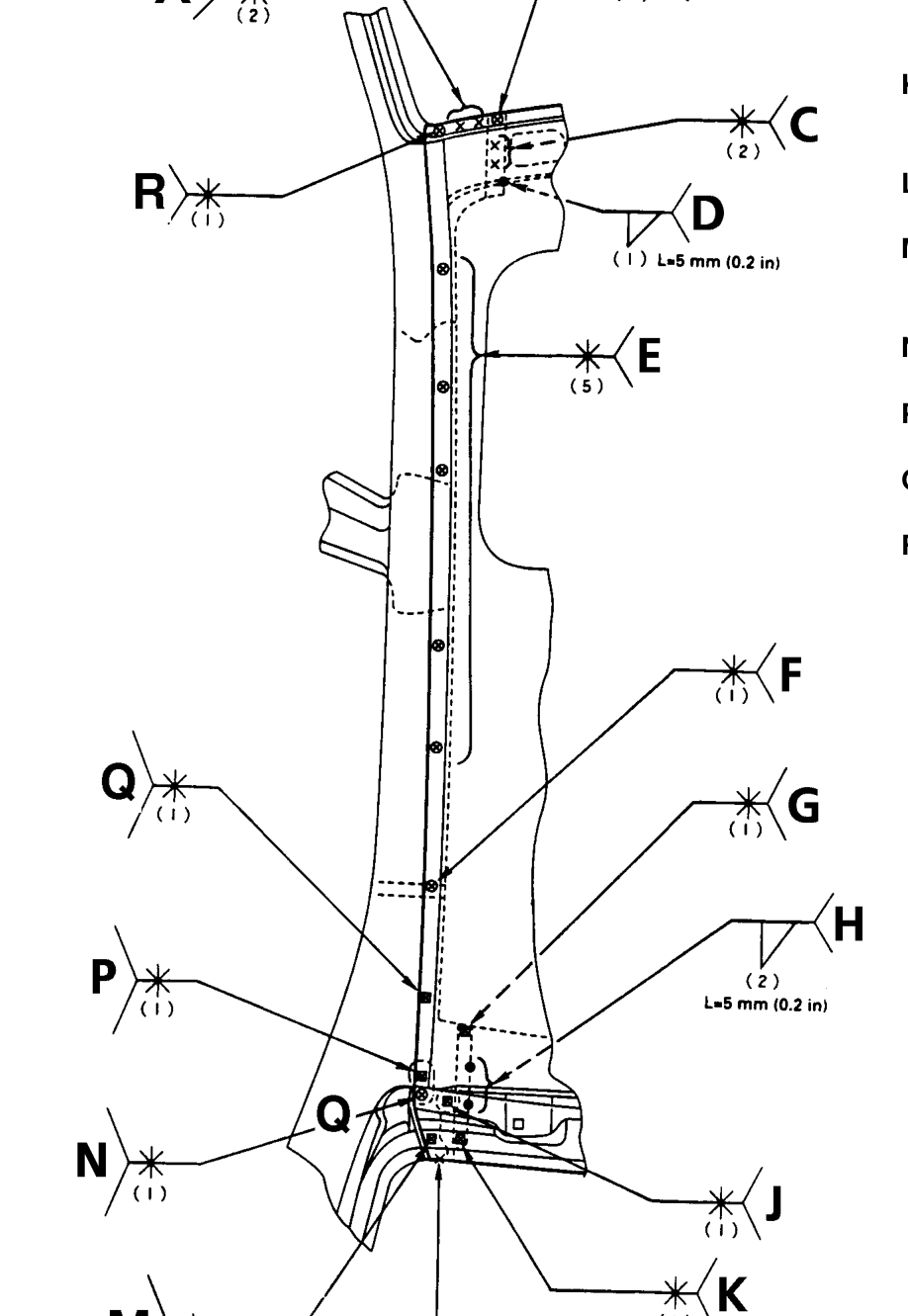

Mass Production Body Welding Diagram

Key to illustration 77m1281A

A. Roof panel and Front inner upper pillar B. Front panel, Front roof rail and Front inner upper pillar C. Front roof rail and Front inner upper pillar D. Front roof rail and Front inner upper pillar E. Roof panel, Outer panel and Roof side rail F. Roof panel, Roof panel stiffener (Sunroof model only), Outer panel and Roof side rail G. Rear roof upper rail, Tailgate hinge reinforcement, Rear roof lower rail and inner panel (4-plate welding) H. Rear roof lower rail and inner panel J. Roof panel, Rear roof upper rail, Tailgate hinge reinforcement and Rear damper stiffener (4-plate welding) K. Rear roof upper rail, Tailgate hinge reinforcement. Rear roof lower rail and inner panel (4-plate welding) L. Rear roof upper rail and Rear pillar upper gutter M. Rear roof upper rail, Rear pillar, upper gutter, Rear damper stiffener and inner panel (4-plate welding) N. Roof panel, Rear roof upper rail and Rear pillar upper gutter P. Roof panel, Outer panel, Rear spring stiffener and inner panel (4-plate welding) Q. Roof panel, Outer panel, Rear spring stiffener and inner panel (4-plate welding) R. Roof panel, Outer panel and Front inner upper pillar
