FRONT INNER WING/SPRING HOUSING

Description

The front inner wing is constructed as a unit with the front spring housing. Therefore, replacement of this component will affect the front wheel alignment. When assembling it, either use a jig or follow dimensions on the frame repair chart for positioning. Weld carefully.

Mass Production Body Welding Diagrams

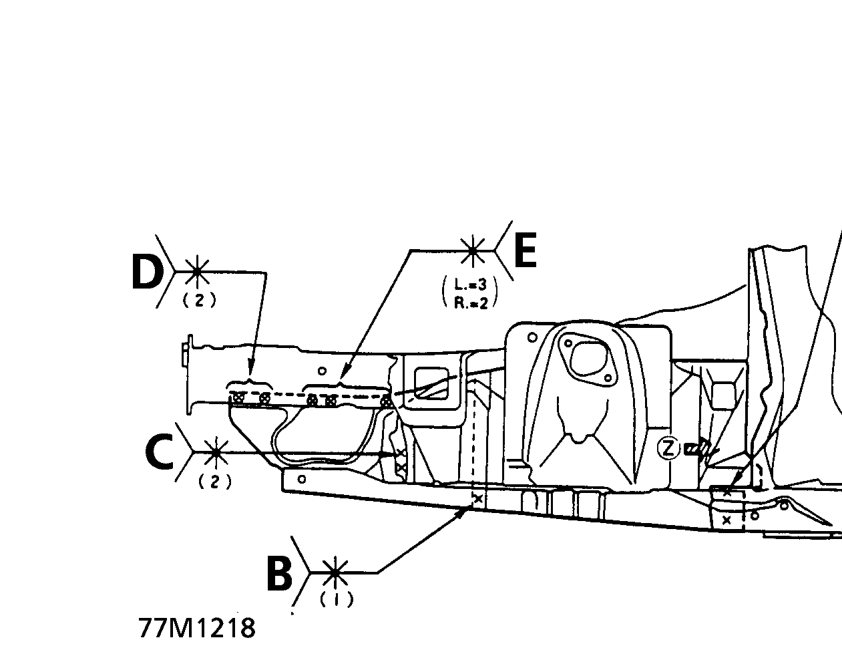

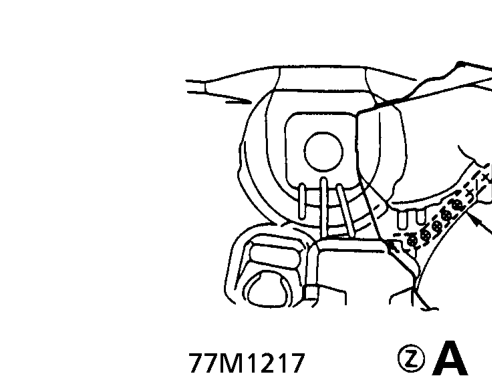

A. View Z B. Spring housing and dashboard lower C. Spring housing, dashboard lower and insulator panel

A. Spring housing and dashboard upper side member B. Front inner wing and spring housing C. Front inner wing and engine support bracket D. Front inner wing and front side frame (back plate extension) E. Front inner wing and front side frame
