Saloon models

Saloon models

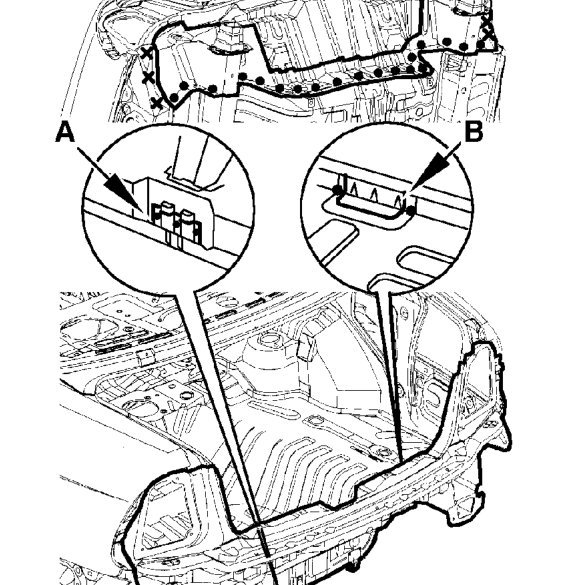

A. Jack-up Stiffener B. Rear Frame Gusset

4. Mould the related parts. Repair all cracks, holes or other defects by MIG or gas welding.

WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.

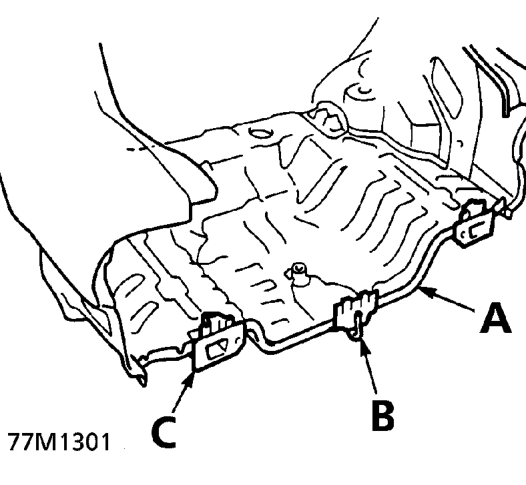

A. Rear Floor B. Jack-up stiffener C. Rear Frame End Bulkhead

5. Set the new rear panel.

• Paint the inside of the new rear panel with the body colour.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. • Read the paint label before opening paint container. • Avoid contact with the skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

• Remove the undercoat from the welding section of the panel and expose the steel plate using a disc sander.

WARNING: To prevent eye injury, wear goggles or safety glasses whenever sanding, cutting or grinding.
