Key to illustration 77M1274

Key to illustration 77M1274

A. See N B. Outer panel, Centre pillar stiffener and Inner pillar C. Outer panel, Centre pillar stiffener, inner pillar and lower anchor (4-plate welding) D. Outer panel, Centre pillar stiffener and Lower anchor E. Outer panel and Lower anchor F. Outer panel, Centre pillar stiffener and inside sill G. Outer panel, Centre pillar stiffener, Roof side rail and Inner pillar (4-plate welding) H. Outer panel, Front inner, upper pillar and Roof side rail J. Outer panel and Roof side rail K. Outer panel and Roof side rail L. Outer panel and Side sill extension M. Outer panel, inside sill and side sill extension N. Outer panel and Centre pillar stiffener (Include A 8 points of 3-plate welding) P. Outer panel and inside sill

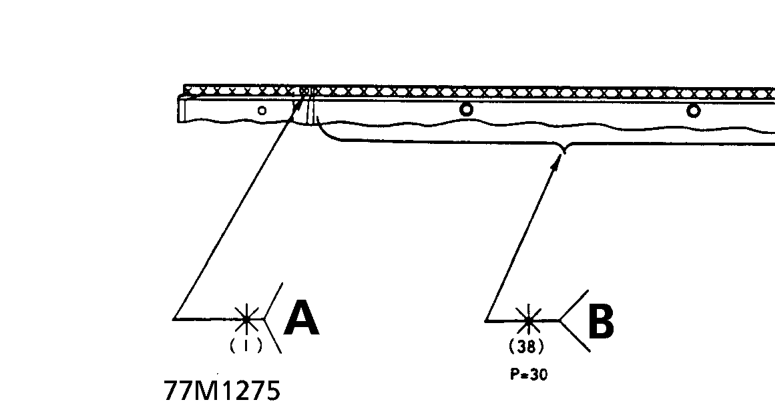

Key to illustration 77M1275

A. Outer panel, Inside sill and Front side outrigger B. Outer panel and Inside sill C. Outer panel, Inside sill and Side sill extension D. Outer panel and Side sill extension
