Panel repairsFront pillar (outer panel)
FRONT PILLAR (OUTER PANEL)
Description
The front pillar is connected to the roof, windscreen, the door hinges, and side sills and is a highly important support. Connection of the front pillar determines the position of the windscreen and front door. Align the front wing, door, and windscreen while the front pillar is loosely mounted, and check the clearances and level differences.

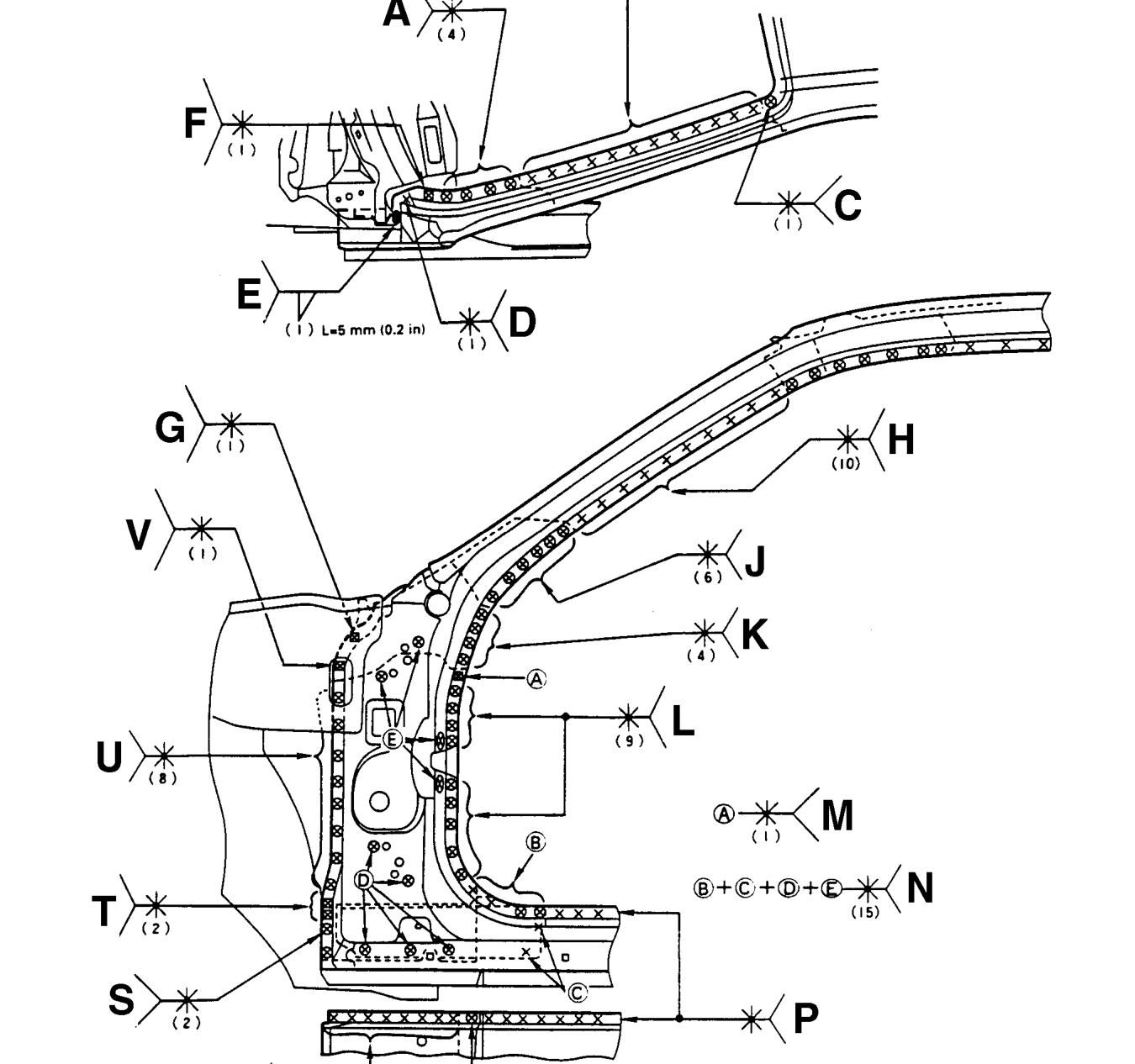

Mass Production Body Welding Diagram
