1.4 and 1.6 models
- Make
- Rover
- Model
- 400 Body Repair Manual
- Year
- 1995–2000
- Section
- Repairs › 1.4 and 1.6 models
Panel repairs1.4 and 1.6 models · page 1 of 3

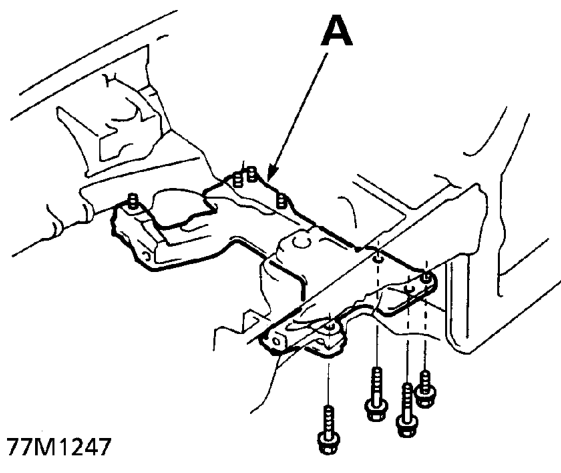

A. Rear Beam

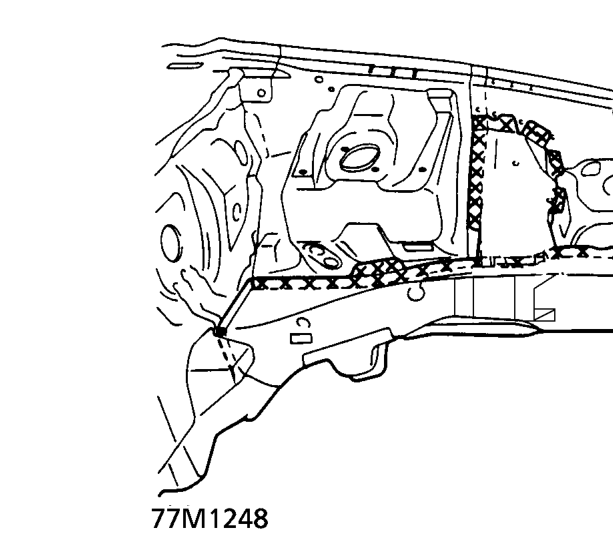

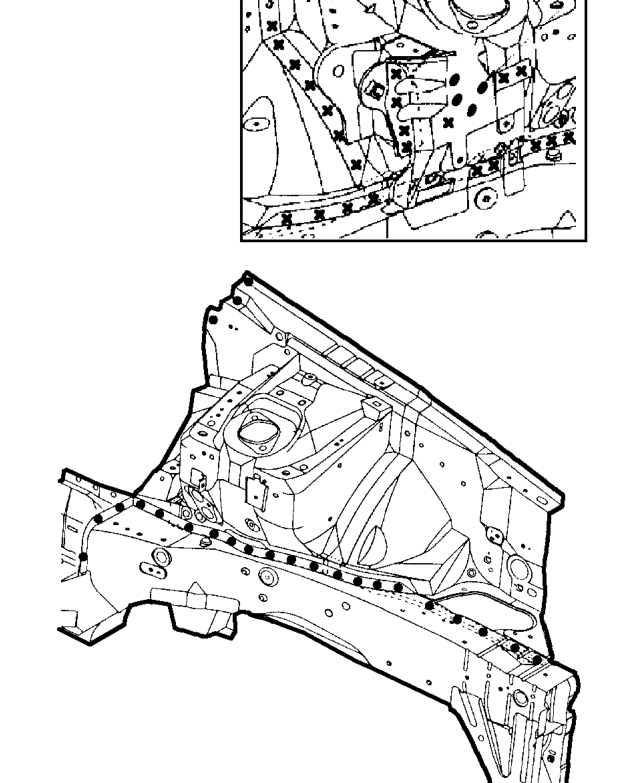

- Perform the main welding.
- Make 20% to 30% more spot welds than there were holes drilled.
- Weld as much as possible with the jig still mounted.
- Weld the front side frame, inner wing, spring housing and bulkhead.
WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.
