Panel repairsRear floor cross member
REAR FLOOR CROSS MEMBER
Description
The rear floor cross member is critical for rear wheel alignment. During replacement, check the position of the rear beam and rear spring base and position the rear floor cross member properly. Weld securely following the welder manufacturer’s instructions to maintain the rigidity. Use of the positioning jig is recommended.

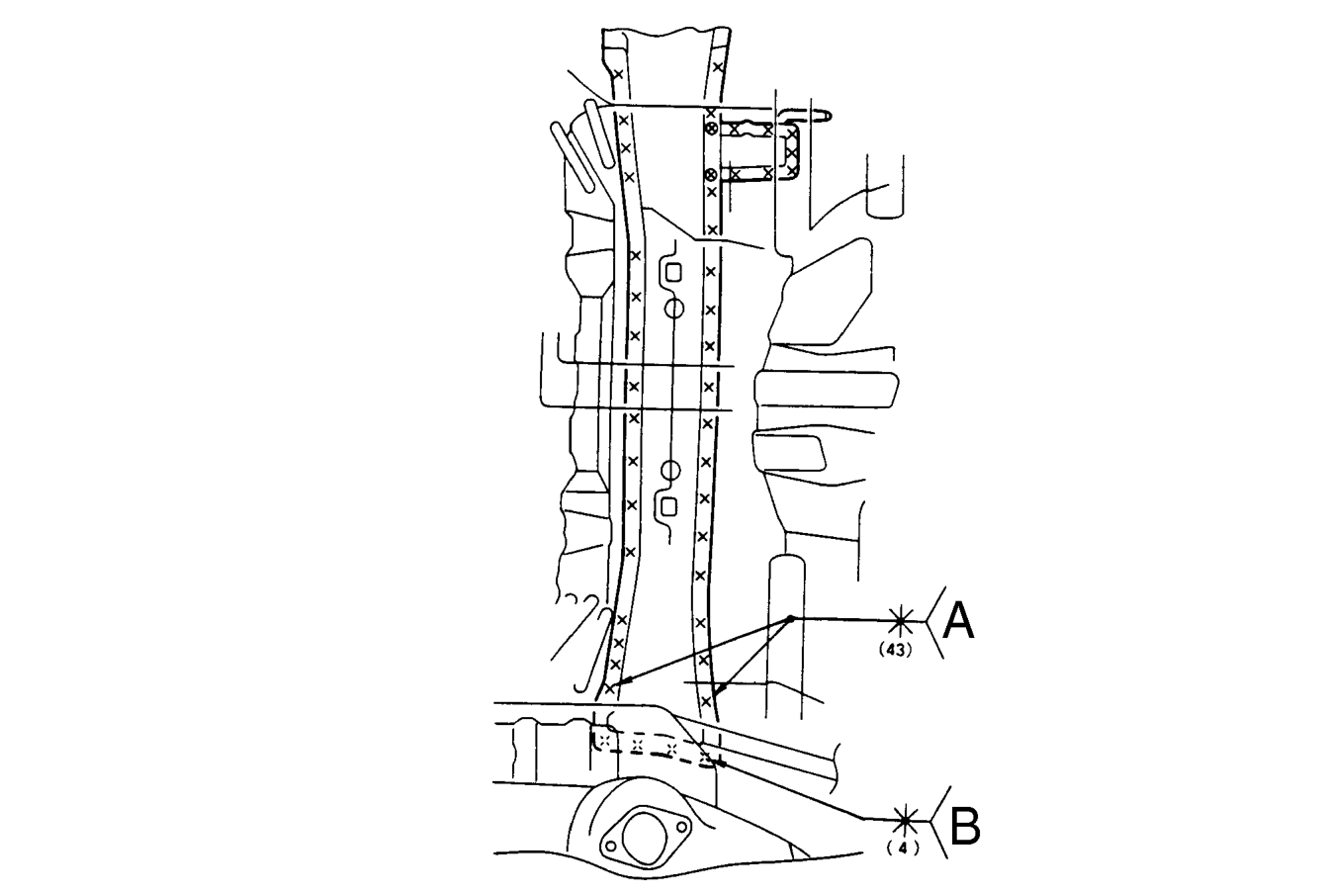

Mass Production Body Welding Diagram
A. Rear floor cross member and Rear floor (include 2 points of 3-plate welding) B. Rear floor cross member and Rear frame A C. Rear floor cross member and Rear frame A D. Forward
