Rear floor

REAR FLOOR

Description

The rear floor is the base of the rear body and it is critical for the rigidity of the rear body. During replacement, refer to the body dimension chart or body correction chart and determine the position to set the rear floor properly. Be sure that the rear floor is not bent or deformed. Weld securely following the welder manufacturer’s instructions to maintain the rigidity of the body.

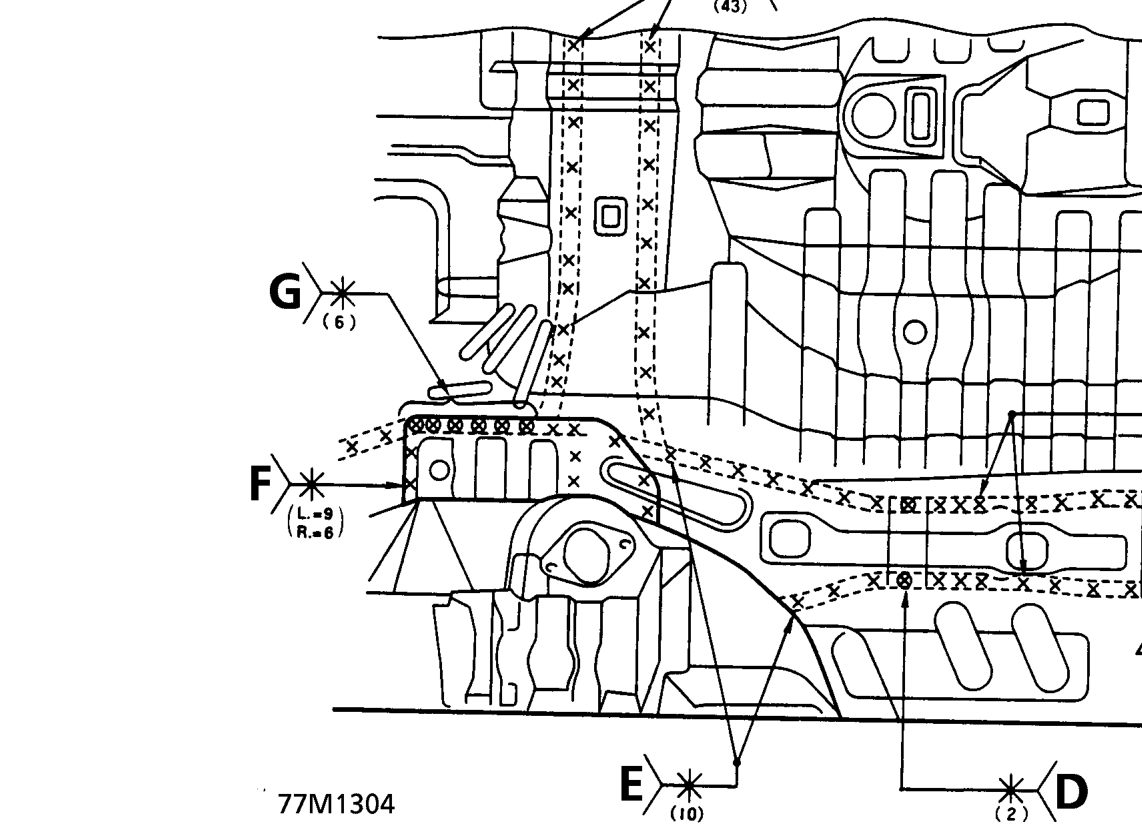

Mass Production Body Welding Diagram

A. Rear floor and Rear floor cross member B. Rear floor and Rear frame B C. Rear floor, Rear frame gusset and Rear frame B D. Rear floor, Rear frame A and Rear frame B E. Rear floor and Rear frame A F. Rear floor stiffener and Rear floor G. Rear floor, Rear floor stiffener and Rear frame
