Front side frame

FRONT SIDE FRAME

Description

The front side frame acts as a base for the front suspension and is highly important in maintaining the rigidity of the front section. Pay careful attention to the position and dimensions of the weld joints and weld carefully.

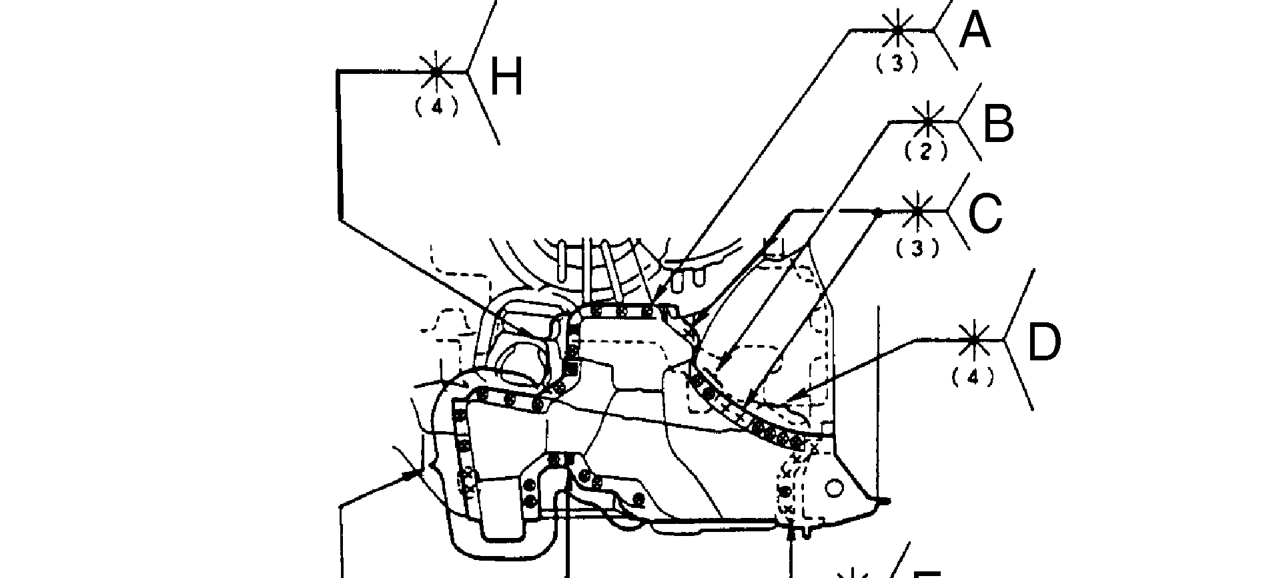

Mass Production Body Welding Diagrams

See Illustration 77M1230A and view on Arrow Z

A. Front side frame, dashboard lower and dashboard lower insulator B. Front side outrigger, dashboard lower and dashboard lower insulator C. Front side outrigger and dashboard lower D. Front side outrigger, dashboard lower and dashboard lower cross member E. Inside sill extension and front side outrigger F. 4 plate welding G. Front side frame, dashboard lower and dashboard lower cross member H. Front side frame, dashboard lower, dashboard lower insulator panel and steering joint cover (include 2 points of 4 plate welding)
